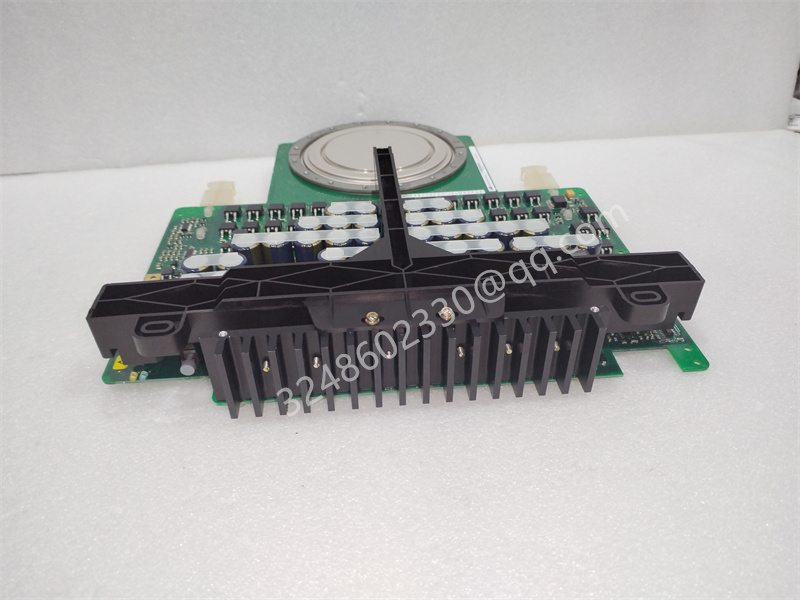

ABB 5SHY3545L0009 (material number 3BHB013085R0001) IGCT complete power unit

IGCT body close-up
1、 Basic identity information
Dual model description
Power chip body model: 5SHY3545L0009 (HiPak series IGCT device)
Material number of the complete drive power unit: 3BHB013085R0001 (integrated drive board+IGCT integrated assembly, also known as GVC750BE101/3BHE009681R0101)
Brand manufacturer: ABB
Origin: Switzerland, original factory assembly and production
Suitable equipment: ABB ACS6000, ACS5000 medium high voltage high-power frequency converter, 3kV/6kV high-power transmission system
Device type: Crimp type integrated gate commutated thyristor (IGCT) with built-in freewheeling diode
Net weight of the whole machine: about 3.4kg
2、 Core electrical parameters
Repetitive blocking voltage: 4500V (4.5kV, peak withstand voltage 9000V)
Rated continuous conducting current: 3500A
10ms surge peak current: 6000A
Typical switching frequency: 500Hz~2kHz
Temperature working range: -40 ℃~+125 ℃
Cooling method: Standard water cooling cooling, forced water cooling for high-power working conditions
Integrated functions: fiber optic gate drive, overcurrent/overvoltage/overtemperature hardware protection, fault status feedback
3、 Hardware structure composition
The complete set of 3BHB013085R0001 is an integrated assembly, and the two parts cannot be separated and installed separately:
Circular IGCT power chip (5SHY3545L0009): high-voltage high-power switch core;
Supporting drive control PCB board: integrated pulse buffer, energy harvesting capacitor, fiber optic transceiver, fault detection circuit;
Unified standard plug-in terminal, directly connected to the back panel fiber and power bus of the inverter power cabinet.
4、 Shutdown status (key procurement focus)
Original factory officially discontinued EOP: 2019
The production of IGCT units for the old ACS6000 model has been completely stopped, and ABB factory will no longer schedule the production of new original complete sets of units;
Original factory inventory window period: From 2019 to 2022, there will be no new complete machines shipped from ABB’s original factory after 2022;
Current situation of market supply
There is no original, brand new stock available for bulk supply, and only three types of circulating goods are available:
Years of accumulated inventory and leftover goods (with very little stock and high premium);
Used parts for dismantling high-voltage frequency converters;
Third party repair and refurbishment, IGCT chip replacement and repair parts;
Original factory maintenance support: In 2023, the original factory will stop supplying spare parts for this model of power chip and driver board, and only third-party power electronics manufacturers will provide board level maintenance and chip replacement.

5、 Usage Specification for Machine Replacement
1. Original inventory of brand new complete units
The ACS6000/ACS5000 power cabinet can be directly replaced:
Dismantle the old power unit after the whole machine is powered off and discharged;
Align the water-cooled interface, fiber optic plug, and power bus buckle for locking;
Perform insulation withstand voltage and fiber optic communication circuit testing before powering on, and conduct a 2-hour no-load trial run without any alarms before carrying on the load.

6、 Typical application scenarios
Metallurgy: Steel rolling main drive, large mine hoist high-voltage frequency conversion;
Electricity: wind power converters, SVG static reactive power compensation devices;
Oil and gas/chemical industry: high-pressure speed control system for large compressors and blowers;
High power propulsion transmission converters for rail transit and ships.
