BENTLY 3300/80-01-01-01-01
Name: 4 Channel Vibration Monitor (3300 old generation TSI system)
⚠️ Important distinction: Belonging to the 3300 series rack, 3500 rack cards cannot be directly mixed, and the two generations of hardware backboards are incompatible with each other

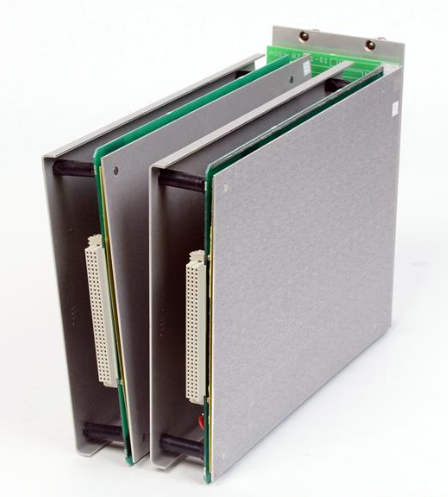

3300/80 physical image
1、 Basic Overview
3300/80 is a classic Bently Nevada modular TSI monitor with integrated front panel LCD display;
Model complete code: 3300/80-01-01-01-01
3300/80=Four channel vibration monitoring host
Segment suffix represents: measurement type, alarm configuration, power supply, relay, option configuration
01-01-01-01-01 Standard configuration: vibration/amplitude monitoring, standard alarm, DC power supply, relay output, basic version
2、 Core functions
Channel: 4 independent monitoring channels
Support access: 3300XL eddy current preamplifier (shaft vibration, shaft displacement), speed sensor (bearing shell vibration)
Measurement quantity: shaft vibration (peak to peak value), shaft position, bearing vibration velocity
Two level alarm: Alert, Danger, channel independent threshold setting
Local panel: LCD real-time display of 4-channel numerical values, status LED indicator lights
output:
Buffer dynamic signals per channel (can be connected to oscilloscope/acquisition instrument)
Recorder analog output
Internal relay contacts, capable of driving sound and light alarms, interlocking shutdowns
Installation: Standard 3300 system 19 inch rack single slot installation
3、 Key parameters
Power supply: Rack backplane power supply (3300 system dedicated power module power supply)
Compatible sensors: 3300XL series 5mm/8mm/11mm eddy current probe system
Frequency range: Suitable for vibration monitoring of conventional rotating equipment such as steam turbines and compressors
Working temperature: -20 ℃~+60 ℃
4、 Procurement&Compatibility Important Reminder
The 3300 series has already been discontinued by the original factory
The original factory no longer produces new products, and the market supply is entirely composed of disassembled testing spare parts and a small amount of historical inventory;
The warranty for spare parts is generally 3-6 months, and for new inventory parts, it can be negotiated for 12 months.
The rack is not universal!
✅ Supporting: 3300 series rack, 3300 power supply, 3300 series various monitoring cards
❌ Unable to insert 3500/05 rack, do not confuse with 3500/40M, 3500/42M
Upgrade plan: The old 3300 renovation project usually involves replacing the entire system with a 3500 system
5、 Typical applications
Replacement of old and in-service 3300 TSI system spare parts for power plant steam turbine units, air separation compressors, and large-scale rotary equipment in refining and chemical industries.
