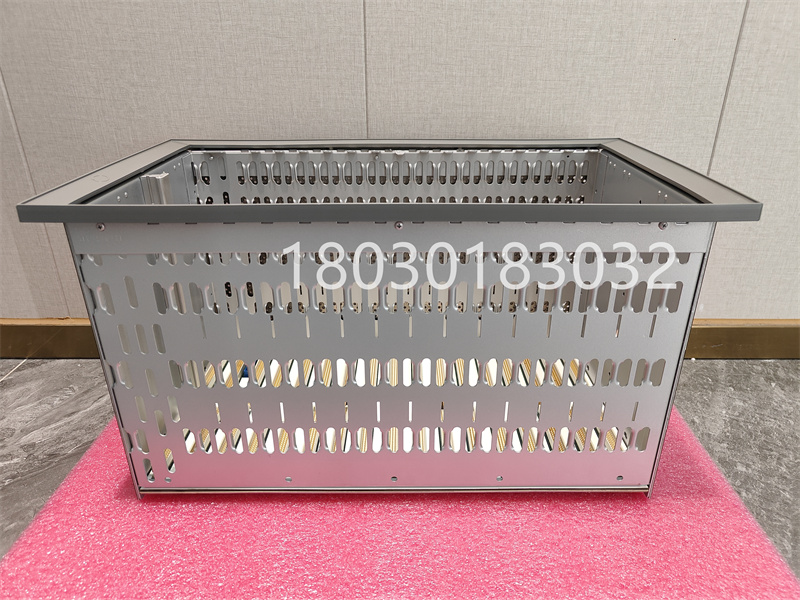

Bently Nevada 3500/05-01-02-00-00-01
Chinese full name: 3500 series standard 19 inch system rack (14 slots)
3500 TSI unit protection system core installation carrier, carrying all power, communication, monitoring, and relay card insertion

3500/05

1、 Complete model segmentation definition
Format: 3500/05- A — B — C — D — E
3500/05-01-02-00-00-01
05=Full size standard full-size rack (different from 06 mini 7-slot rack)
01=19 inch EIA standard, 14 module slots
02=Rack Mount rack rail installation (19 inch standard rack rail fixed, rear wiring)
00=No explosion-proof/third-party organization certification
00=Reserved extension space
01=CE compliant version
Comparison of similar installation methods
01: Panel Mount panel embedded installation
02: Track Mount rail installation (most commonly used in this project)
03: Ulkhead Mount pre installation wiring (full-size rack optional)
2、 Hardware key information
Slot layout
The two leftmost half height slots: accommodate 3500/15 power modules (can be single power/dual redundant power)
Adjacent to the power slot: Slot1 must be installed with 3500/22M (TDI framework communication interface)
Remaining slots can be freely configured with various types of half height/full height card components such as 3500/40M, 42M, 50M, 25, 62, 33 relays, etc
Backboard function
The high-speed bus inside the rack enables data exchange between all modules
Unify the allocation of DC working power to all card inserts
Module hot swappable signal and fault diagnosis circuit
Overall dimensions
Width 482.6mm (19 inch standard); Depth of approximately 297mm; height compatible with standard cabinet units
Work Environment
Temperature: -30 ℃~+65 ℃; Humidity 5% to 95%, no condensation
3、 Important procurement reminder
The rack itself does not contain any power supply, monitoring card, or I/O back card. It is only a chassis and backplane, and various modules need to be separately equipped
Distinguish between the two main racks, the backboards are not interchangeable, and the cards cannot be mixed together
3500/05:14 slot full-size rack
3500/06:7 Slot Mini Rack
The suffix of the ordered model cannot be replaced arbitrarily; There are differences in customs declaration and overseas projects between 01 (CE) and 00 (no CE)
4、 Lifecycle information
Continuous supply from the original factory; There is ample stock of brand new original equipment, and the market for second-hand dismantling racks has a large circulation volume
Warranty reference: Brand new original 12 months, disassembled spare parts 3-6 months
5、 Typical applications
TSI protection system for power plant steam turbines, gas turbines, centrifugal compressors, and air separation units; 19 inch standard cabinet standard configuration plan.
