BENTLY 3500/15 Order Number: 133292-01
Name: Low Voltage DC Power Supply Module (Legacy Old style DC Power Supply)

1、 Basic Overview
Belonging to the Bently Nevada 3500 unit protection framework system of Baker Hughes;
133292-01=Legacy low-voltage DC power supply front module, the back end must be matched with 133300-01 low-voltage DC PIM input interface module, used in sets before and after, and cannot be mixed separately with the new power supply PIM.
Installation position: 3500/05 rack leftmost half height power slot (upper and lower dual slot positions)
Support single power supply/dual redundant power supply configuration; Redundancy mode supports hot swapping, online replacement does not interrupt system operation
Panel indicator light: SUPERY OK, steady light indicates normal power supply
2、 Core electrical parameters
External input: 20-30 VDC (nominal 24VDC)
Backplane output: converted to internal power supply of the rack, supplying all monitoring cards
Maximum input current: 11A
Built in protection: undervoltage, overcurrent, short circuit, overheating protection
Working environment: -30 ℃~+65 ℃; Humidity 5% to 95%, no condensation
3、 Important model differentiation (easy to fall into procurement pitfalls)
3500/15 133292-01
Old Legacy low-voltage DC power supply (24VDC external input), backend PIM: 133300-01
Do not confuse other power supplies in the same series:
129486-01: High voltage DC power supply (88-140VDC input)
106M1079-01: New Universal AC Power Supply (85-264VAC)
⚠️ The front and rear boards of the new and old power supplies are incompatible! The old Legacy DC module cannot be paired with the new PIM. Purchasing must confirm the complete set of front and rear board numbers.
4、 Lifecycle information
The old legacy DC power supply from the original factory has been discontinued and will no longer produce brand new original products;
Market supply: dismantled testing spare parts, a small amount of new inventory parts;
Warranty reference: 12 months for brand new inventory, 3-6 months for disassembled spare parts.
5、 Typical application scenarios
3500 vibration protection frame for steam turbine units, centrifugal compressors, and gas turbines;
Suitable for on-site cabinets with only 24VDC DC power supply and no AC 220V power supply.

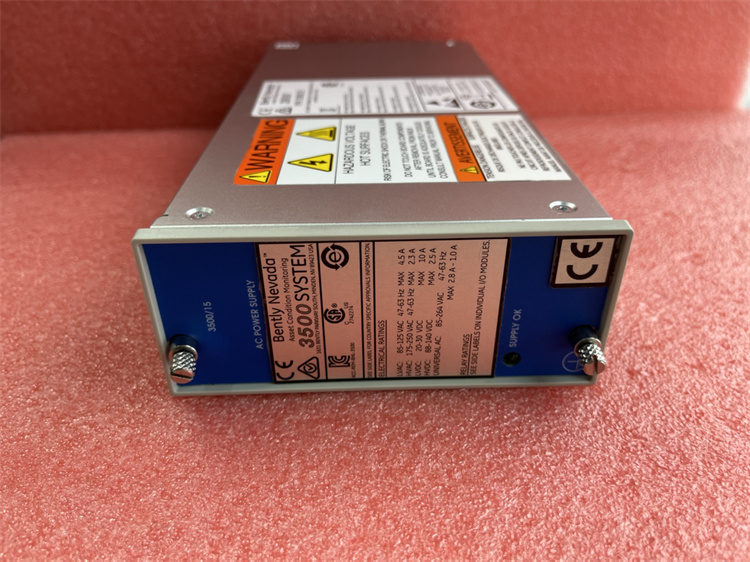

BENTLY 3500/15 Order Number: 106M1079-01
Name: Universal AC Power Supply Universal Wide Width AC Power Module (New Generation 3500/15 AC Power Supply)
Belonging to Bently Nevada 3500 Unit Protection Framework System
1、 Basic Information
Installation position: The leftmost half height power slot of the 3500/05 rack supports single power supply and dual redundant power supply configurations
Complete set of mandatory requirements
Front card: 106M1079-01 (power supply body)
Rear card PIM: 106M1081-01 (AC power input interface module)
⚠️ Important compatibility red line
This new universal AC power supply ≠ Legacy old power supply (133292-01 low voltage DC, 129486-01 high voltage DC)
The front and rear panels cannot be mixed and crossed!
2、 Core electrical specifications
Communication input: 85-264 VAC, 47-63Hz (globally applicable, 110V/220V no need to distinguish versions)
Backplane output: provides multiple DC working power supplies for all monitoring cards in the rack
Maximum output current: 5.5A
Panel indicator light: SUPERY OK, constantly on=power supply is normal
Function: Supports hot swappable redundancy; Dual power supply, one main and one backup, online replacement for single channel faults without interrupting the operation of the 3500 system
Built in protection: overvoltage, undervoltage, overcurrent, short circuit, overheating protection
3、 Intuitively distinguish from 3500/15 133292-01
Part number, power type, matching PIM input power generation
106M1079-01 Universal AC Power Supply 106M1081-01 85~264VAC New Generation Universal AC
133292-01 Legacy Low Voltage DC Power Supply 133300-01 20~30VDC (24V DC) Old Legacy Series
4、 Life cycle and source of goods
Continuous supply from the original factory (easier to purchase compared to Legacy models);
Market supply: Both brand new original stock and disassembled testing spare parts are in circulation;
Warranty reference: 12 months for brand new original equipment, 3-6 months for disassembled spare parts.
5、 Applicable scenarios
3500 vibration protection frame for power plant steam turbine units, gas turbines, centrifugal compressors, and large-scale rotating equipment in coal chemical industry;
The on-site cabinet is the preferred choice for 220VAC power supply scenarios.
