Bently Nevada 3500/40M 176449-01 Four Channel Proximity Sensor Monitor

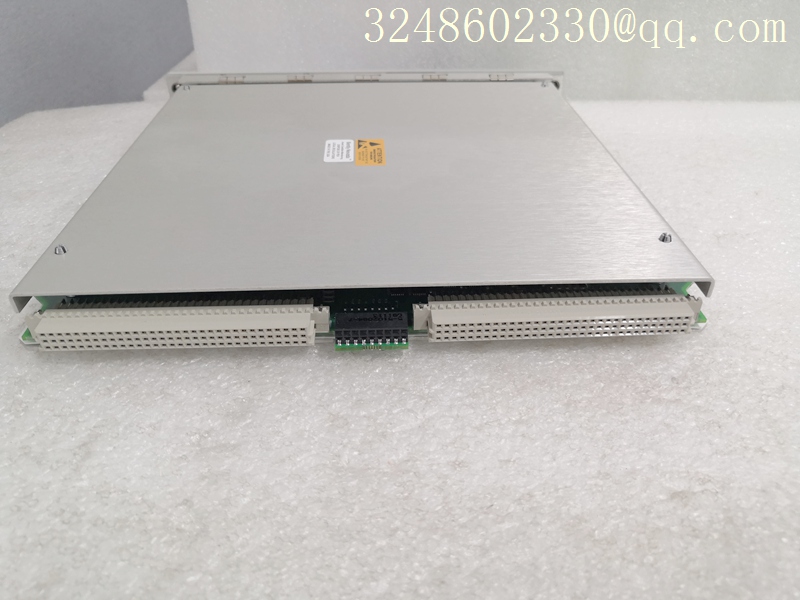

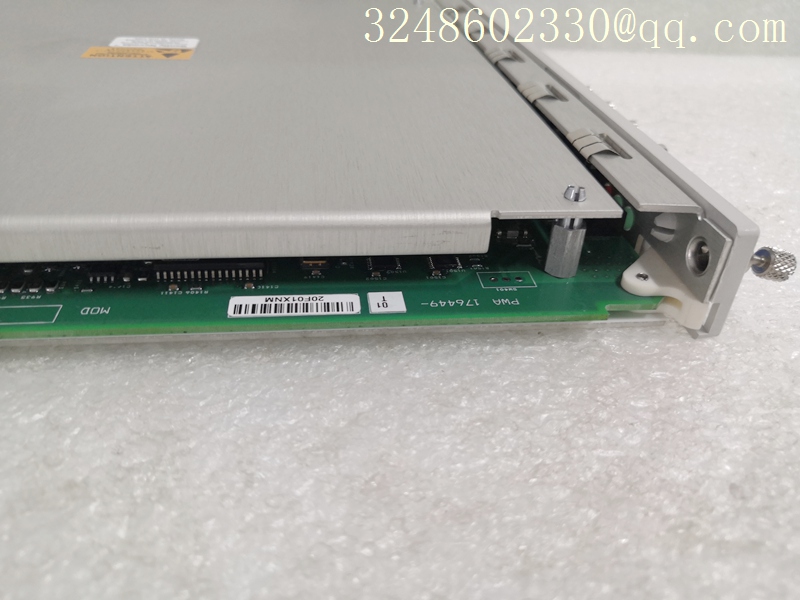

Physical 3500/40M module
1、 Basic Information
Complete model: 3500/40M, part number 176449-01
Brand: Bently Nevada (Bently, Baker Hughes)
Origin: United States USA
Product category: Proximitor Monitor only eddy current (proximity probe) dedicated monitoring card
System: TSI mechanical protection system for 3500 units
⚠️ Key differentiation (easily confused in procurement)
176449-01=3500/40M: Only supports eddy current probes, cannot be connected to velocity/acceleration seismic sensors
176449-02=3500/42M: Hybrid type, compatible with both eddy current probe and seismic sensor. The firmware and channel configuration of the two are not interchangeable and cannot be directly exchanged
2、 Core functions
4 independent channels, only receiving 3300/3500 series eddy current preamplifier signals;
Channel pairing configuration, supporting measurement:
Radial axis vibration
Axial thrust position (axial displacement)
Eccentricity
Differential Expansion
REBAM Bearing Metal Wear Monitoring
3、 Electrical specifications
Sensor power supply: Each channel outputs -24VDC to the preamplifier, with diagnosis for disconnection and short circuit
output interface
4-channel BNC buffered raw eddy current signal (external oscilloscope)
Each channel has a 4-20mA analog output, which is uploaded to DCS
Alarm mechanism: Independent Alert for each channel+Danger trip
Accuracy: Full scale ± 0.33% FS
Power consumption: approximately 6.3W
Installation: Standard 3500 rack single slot, supports hot swapping
Working temperature: -30 ℃~+65 ℃
