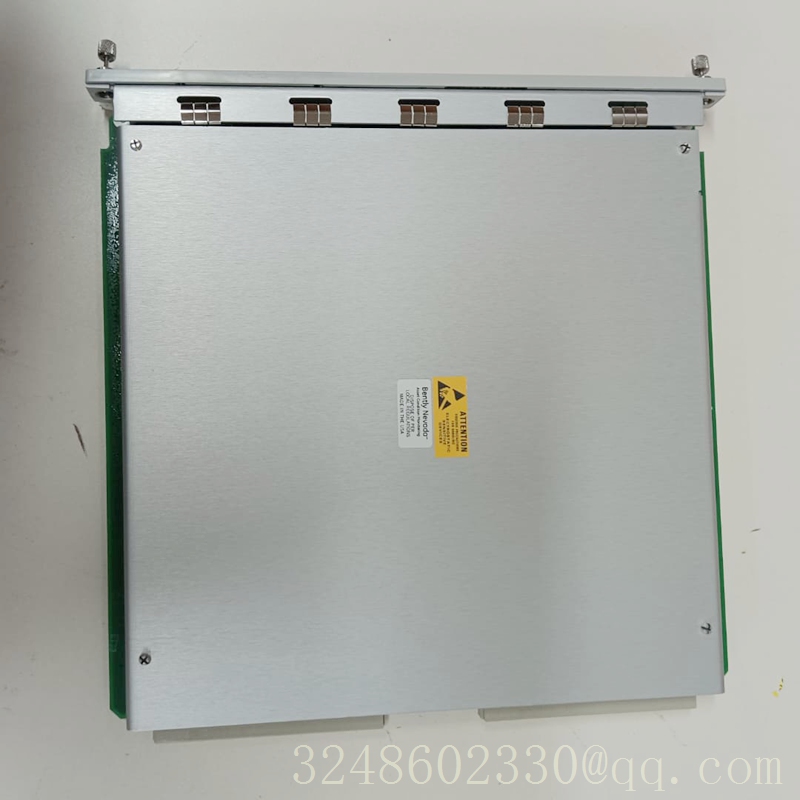

Bently Nevada 3500/65 172103-01 16 Channel Temperature Monitoring Module

1、 Basic Information
Model: 3500/65, part number 172103-01 (front card)
Brand: Bently Nevada (Baker Hughes)
Origin: United States USA
System: 3500 Rotating Machinery TSI Protection System
Supporting rear card: 172104-01 (exclusive terminal backplane, front and rear cards must be matched in sets)
Hardware specifications: Full height front card+Full height rear card, supports online hot swapping

2、 Core functions
16 channel temperature acquisition module, supporting mixed access sensors:
RTD thermistor: 3-wire/4-wire Pt100
Isolation tip thermocouple TC: K, E, J, T, S, R, B types
Electrical isolation between channels, resistant to on-site interference;
Free software settings for Alert and Danger alerts;
Built in sensor disconnection and circuit fault self diagnosis;
No onboard 4-20mA analog output, temperature data is uploaded through the rack bus. If hard wired 4-20mA is required, it needs to be paired with a 3500/46 output module;
Support TMR triple redundancy installation (three adjacent configuration voting, used for high safety level units).
3、 Key electrical parameters
Number of channels: 16
Typical power consumption: 3W
Working temperature: -30 ℃~+65 ℃
Storage temperature: -40 ℃~+85 ℃
Configuration software: 3500 Rack Configuration Software
Net weight (front card): approximately 0.91kg
