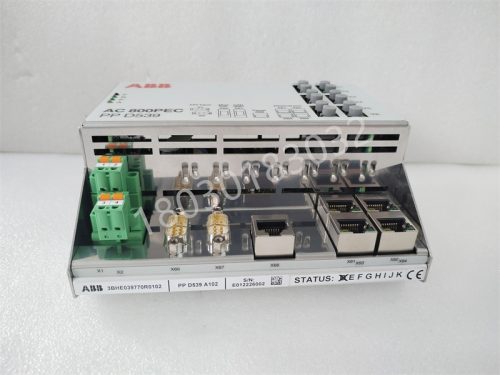

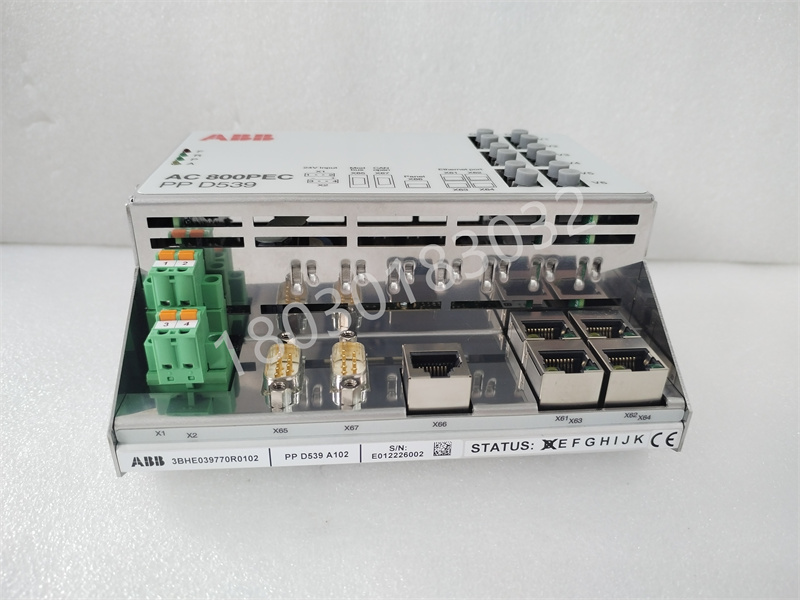

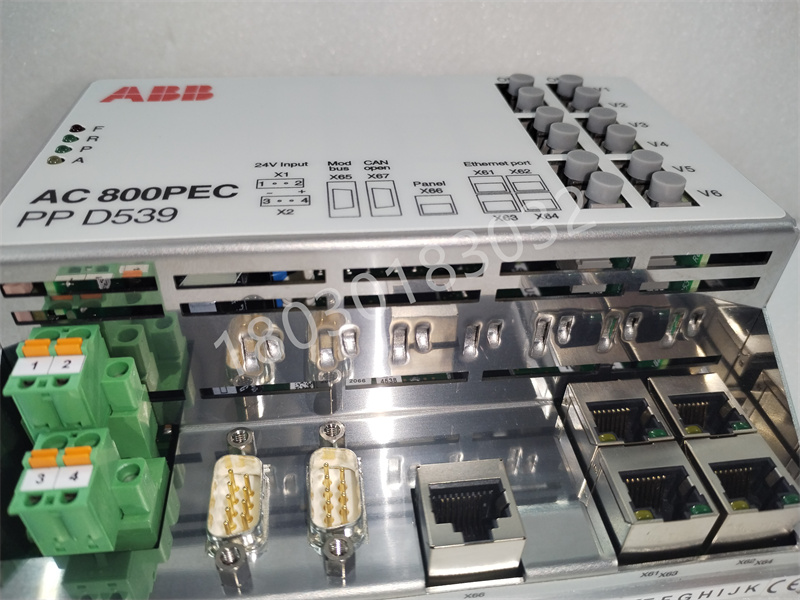

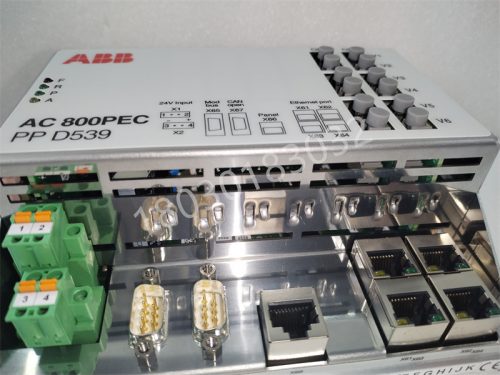

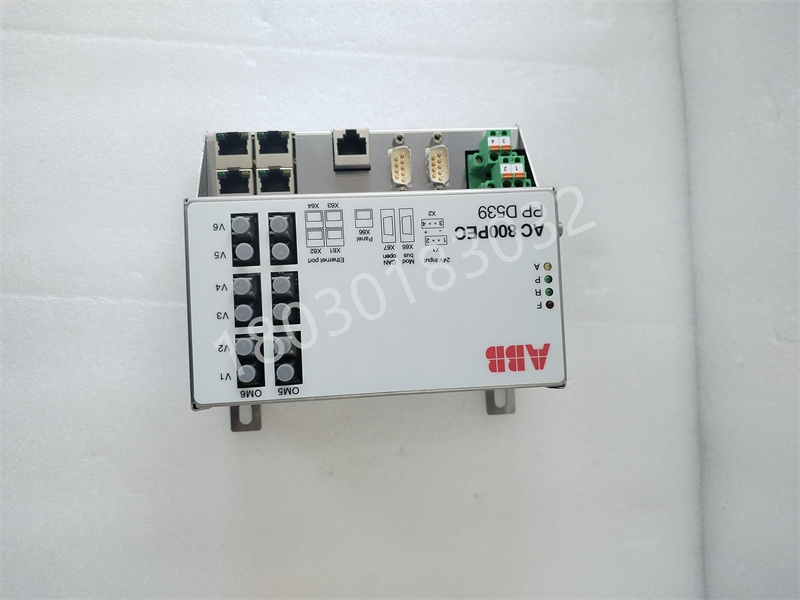

ABB PPD539A102 3BHE039770R0102 Central Processing Unit Module

product overview

ABB PPD539A102 3BHE039770R0102 is a high-performance central processing unit module belonging to ABB’s AC800PEC series. This module is designed specifically for industrial automation and process control, and can meet the high requirements of real-time and reliability for complex industrial systems.

technical specifications

Processor: Adopting a dual core processor, it has powerful computing power and can handle high-speed control and low-speed process control tasks.

Cycle time: The shortest can reach 100 microseconds, ensuring that the system can quickly respond to various control instructions.

Communication interface: Supports multiple industrial communication protocols, including Ethernet, serial communication, Profibus, and Modbus.

I/O interface: Modular design, supporting flexible configuration of multiple I/O modules, allowing users to choose the appropriate number and type of I/O points according to their actual needs.

Working temperature range: -25 ° C to+70 ° C.

Protection level: IP20.

Size: Compact design, easy to install and maintain.

Functional Features

High performance control: Using advanced control algorithms and high-performance processors, it can quickly respond and accurately control industrial equipment.

High reliability: equipped with multiple redundancy designs and fault diagnosis functions to ensure stable system operation.

Flexible configuration: Supports multiple input and output signal types, suitable for complex industrial process control.

Powerful data processing capability: supports real-time data collection and processing, meeting high dynamic response requirements.

Built in control loop module: capable of implementing advanced control functions such as two-way PID control, cascade control, compensation control, etc.

Multiple protection measures: Each signal is equipped with multiple overvoltage and overcurrent protection measures at the interface to ensure that the equipment is not damaged under large signal interference.

application area

Power system: used for excitation system control, frequency converter control, and direct current transmission.

Manufacturing industry: suitable for production line automation control, mechanical control, and process control.

Water treatment and chemical industry: used for automation control of pump stations, boilers, and water treatment equipment.

Rail Transit: Supports automated management of rail transit equipment.

Renewable energy generation: such as the control of wind turbines and photovoltaic power generation systems.

Building automation: used for HVAC and lighting control systems.

advantage

High performance processing capability: Designed with a dual core processor, capable of handling high-speed control and low-speed process control tasks.

Quick response: With a minimum cycle time of 100 microseconds, the system is able to quickly respond to various control instructions.

High reliability design: Industrial grade hardware design without moving parts, supporting redundant design to ensure long-term stable operation of equipment in harsh environments.

Multiple communication interfaces: Supports multiple communication protocols for easy integration with other devices or systems.

Flexible configuration: Modular design, easy to combine and expand, suitable for different application scenarios.
