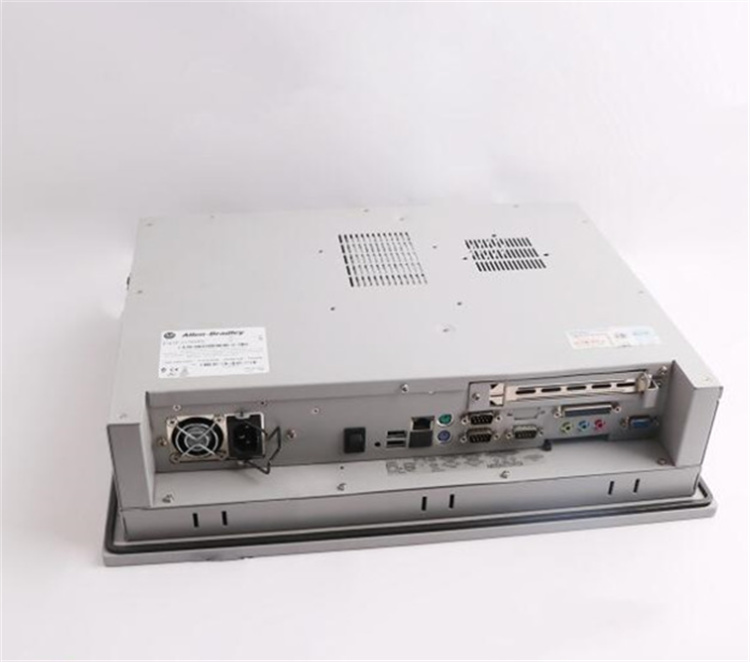

A-B 6181P-17A3MWX1DC industrial computer (integrated display all-in-one machine)
6181P-17A3MWX1DC is a high-end integrated display industrial computer from the Allen Bradley 6181P series, belonging to the Advanced class. It is equipped with a fourth generation Core i7 processor, a 17 «touch screen, DC power supply, and high-performance HMI and data processing terminals for harsh industrial sites.

1、 Product Information
Model: 6181P-17A3MWX1DC
Series: 6181P (Integrated Display Computer)
Manufacturer: Allen Bradley (A-B)/Rockwell Automation
Type: 17 «capacitive touch screen all-in-one machine (5:4 screen ratio)
Level: Advanced (i7, 8GB, 256GB SSD, DC24V)
Status: discontinued (alternative model: 6181P-117C2MX1DC)
2、 Technical parameters and specifications
1) Core hardware
Processor: Intel Core i7-4700EQ (4-core 8-thread, 2.4GHz, 64 bit, hyper threading)
Memory: 8GB DDR3L (maximum 16GB)
Storage: 256GB MLC Solid State Drive (SSD)
Display: 17 «TFT capacitive touch screen, 1280 × 1024 (5:4), aluminum frame
2) I/O interface
Network port: 2 x Gigabit Ethernet (10/100/1000 Mbps)
USB: 4xUSB 3.0 (front/rear)
Serial port: 2 × RS-232 (COM1/COM2)
Video: DVI — I, DisplayPort (Dual Display Output)
Audio: Line in, Line out, Mic in
Keyboard and mouse: PS/2 keyboard/mouse interface
3) Electrical and Environmental
Power supply: 18-32 VDC (typical 24VDC), fanless design
Power consumption: approximately 60W
Working temperature: 0 ℃~+55 ℃ (32~131 ° F)
Storage temperature: -40 ℃ to+85 ℃
Protection level: NEMA 4/12, IP66 (front panel), dustproof, waterproof, and oil resistant
Seismic resistance: 1g (5-500Hz), in compliance with MIL-STD-810
4) Physical dimensions and weight
Dimensions (width x height x depth): 452 mm x 356 mm x 105 mm (17.8 «x 14.01» x 4.13 «)
Weight: Approximately 8.2 kg (18.1 lbs)
5) Operating System
Pre installed: Windows 7 Professional SP1 (64 bit)
Compatibility: Windows 10 IoT Enterprise, Windows Server 2008 R2
3、 Usage scenarios
Automotive manufacturing: production line HMI, robot control station, quality data terminal
Food and beverage: NEMA 4X protection, water washing environment (stainless steel frame version)
Energy and electricity: power plant DCS operation station, photovoltaic/wind power monitoring terminal
Oil and gas chemical industry: control terminals outside explosion-proof areas, process data collection and monitoring
Intelligent logistics: warehouse management, AGV scheduling, sorting line human-machine interface
4、 Related models (6181P series 17 «model)
6181P-17A3MW71AC: AC 100-240V power supply, the rest are the same
6181P-17C2MWX1DC: Stainless steel frame, Win10 IoT, DC24V (replaces this model)
6181P-17B2SWX1DC: Standard (i5, 4GB, 128GB SSD)
6181P-19A3MWX1DC: 19 «screen (1280 × 1024), same configuration
6189V series: embedded industrial control computer without display, suitable for cabinet installation
5、 Core advantages
High performance fanless: i7 quad core, fanless cooling, zero failure rate, suitable for dusty/vibrating environments
Industrial grade touch: capacitive multi touch, operable with gloves, fast response, long lifespan
Durable protection: IP66/NEMA 4X front panel, waterproof/dustproof/oil resistant/scrub resistant
Wide voltage DC power supply: 18-32VDC, suitable for industrial 24V systems, resistant to voltage fluctuations
Rockwell ecosystem: native compatibility with FactoryTalk View, SE/ME, seamless integration with AB PLC
