AAP3798102-00030 Control Module
1、 Basic Product Information
Source of project parameters
Product model AAP3798102-00030
Brands CAMERON/COOPER/Ingersoll Rand
Product series AAP3798102 series
Product type: UIM control panel/operation panel/main control module
Main application: Centrifugal air compressor control system
Same series models AAP3798102-00037/P3798102-00037/AAP3798102-00031
Important note: AAP3798102-00030 is part of the Cameron/COOPER centrifugal air compressor main control system and belongs to the UIM (User Interface Module) operation panel or MAIN LOGIC MODULE (MLM) controller

2、 Related product information
Related model description source
AAP3798102-00130 Compressor Control Module
AAP3798102-00037 UIM operation panel
AAP3798102-00031 Centrifugal Air Compressor Control Panel/Main Control Module
P3798102-00037 Control panel of the same series
P3798102-00130 Compressor Control Module
P37P3798102-00000 control panel/motherboard
P37P3798102-00010 Control panel/operation board

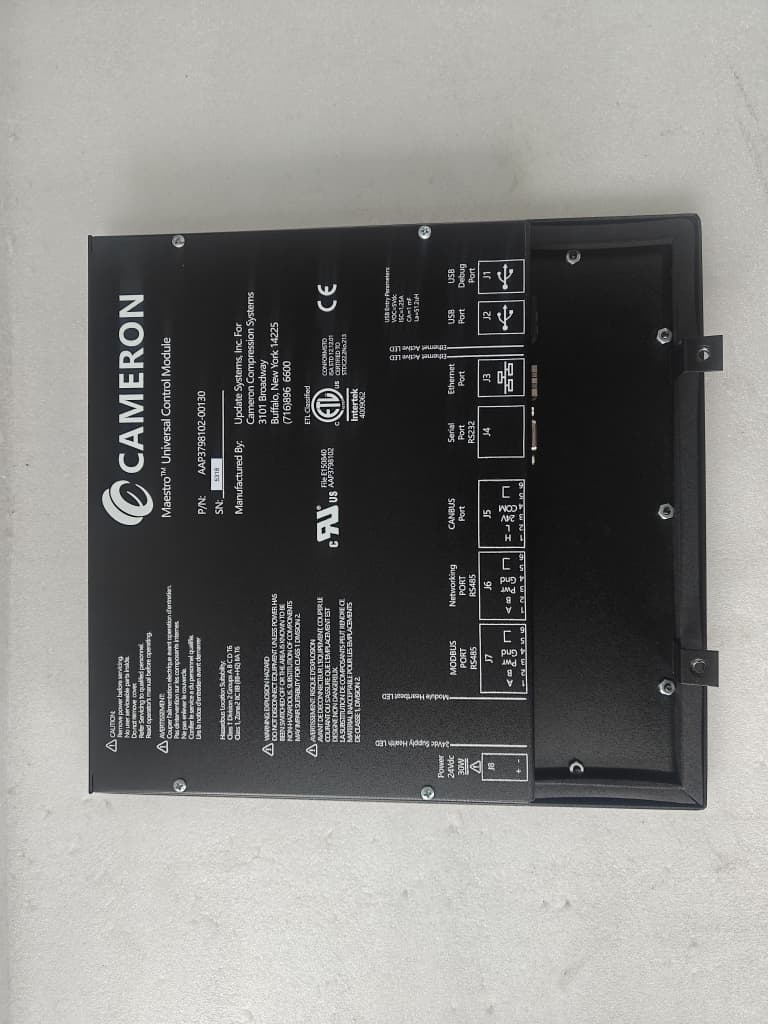

3、 AAP3798102-00130 reference specifications (same series)
Due to the unclear technical specifications of AAP3798102-00030 in the search results, the following are reference specifications for AAP3798102-00130 in the same series:

Source of parameter values
Input voltage 24V DC
Output voltage 24V DC
Maximum output current 2A
Maximum input power 50W
Working temperature range -20 ℃ -60 ℃/-40 ℃ -85 ℃
Protection level IP20/IP65
Dimensions 120mm x 80mm x 40mm/230mm x 160mm x 64mm
Weight 500g/1.5kg
Communication interface RS-485/Modbus/DeviceNet/PROFIBUS-DP/CANopen

4、 Application Fields
Source of Industry Application Scenarios
Control System of Centrifugal Air Compressor in Petrochemical Industry
Natural gas compression and transportation system
Industrial manufacturing compressed air system
Refrigeration air conditioning refrigeration compressor control system
5、 Important note
Project Description
Manufacturer change COOPER/CAMERON now belongs to Ingersoll Rand
Same series description: AAP3798102-00030 belongs to the same UIM control panel series as AAP3798102-00037 and AAP3798102-00031
Technical documentation suggests contacting CAMERON/Ingersoll Rand official for detailed technical manuals
Alternative model suppliers also provide AAP3798102-00130 as a reference/alternative
