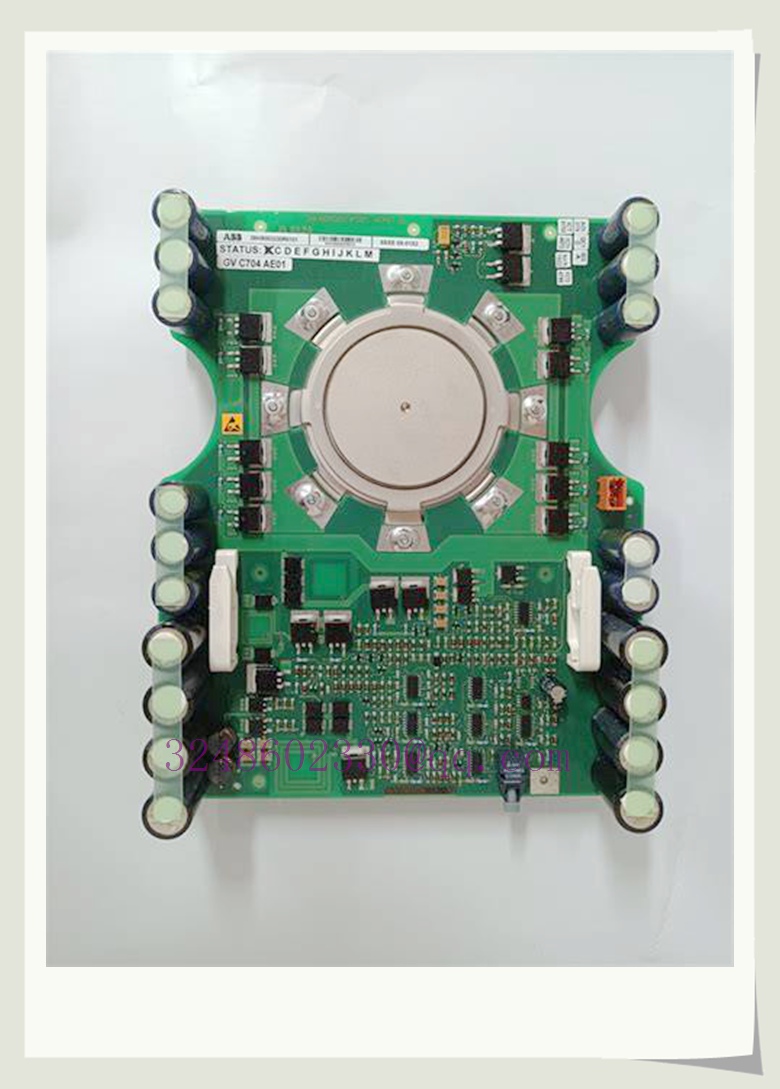

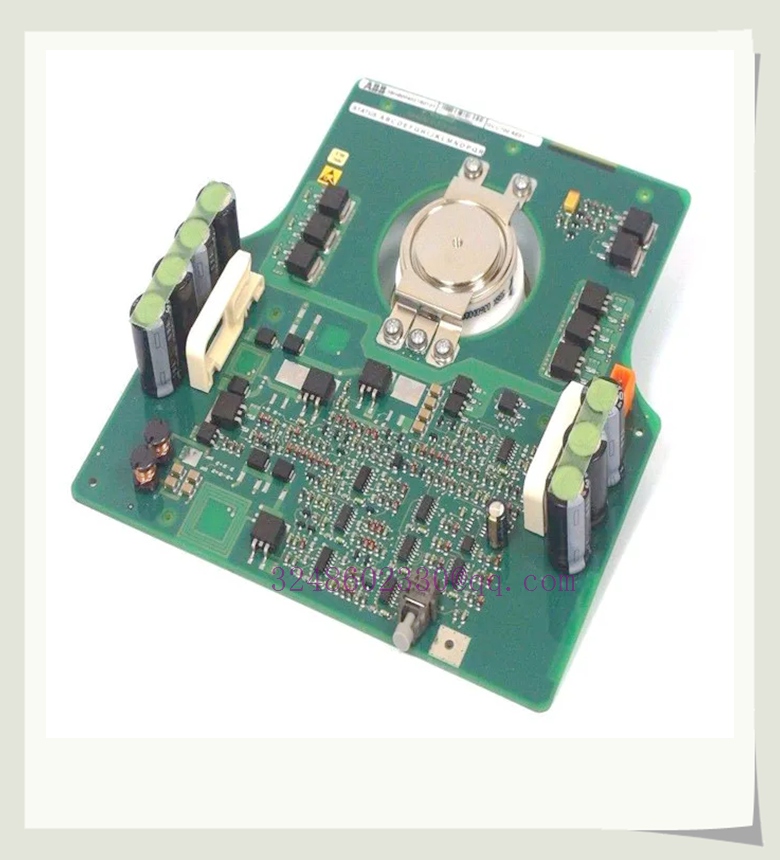

ABB 5SHX0445D0001 High-Power IGCT (Integrated Gate-Commutated Thyristor) Module

  • 5SHX2645L0004: Another widely used ABB IGCT module for medium-voltage drive applications.
  • 5SDF0860H0003: ABB Press-Pack IGBT module, often used in newer high-power converter topologies.
  • ACS1000 Series Complete Drive: The flagship medium-voltage drive system that natively utilizes this IGCT module.
  • ABB IGCT Gate Drive Units: Essential配套 control boards required to properly trigger and protect the 5SHX0445D0001.
Классификация:

Введите текст заголовка

  • Brand: ABB
  • Model: 5SHX0445D0001
  • Product Title: ABB 5SHX0445D0001 High-Power IGCT (Integrated Gate-Commutated Thyristor) Module
  • Product Name: 4500V / 4400A IGCT Power Semiconductor for Medium Voltage Drives

Product Description

The ABB 5SHX0445D0001 is a high-performance Integrated Gate-Commutated Thyristor (IGCT) module designed for demanding medium-voltage power electronics applications. Combining the advantages of both thyristors and transistors, this device is engineered to handle extremely high voltages and currents with superior switching speeds and low conduction losses. It serves as a critical power switching component, widely utilized as a core spare part in medium-voltage AC drives (such as the ABB ACS1000 series), high-power motor speed control systems, and power grid reactive power compensation equipment.

Technical Specifications

  • Device Type: Integrated Gate-Commutated Thyristor (IGCT)
  • Rated Voltage (V_DRM / V_RRM): 4500 V
  • Rated Current (I_TAV): 4400 A
  • Peak Forward Current (I_TSM): Approx. 6300 A
  • Operating Temperature Range: -40°C to +85°C
  • Typical Application: Medium Voltage AC Drives (e.g., ACS1000), High-Power Motor Control, Power Quality Optimization

Key Features and Benefits

  • High Power Density: Capable of handling 4500V and 4400A, making it ideal for multi-megawatt industrial applications without requiring complex series/parallel stacking.
  • Fast Switching & Low Losses: IGCT technology offers extremely fast turn-off times and low conduction losses, significantly improving the overall efficiency of medium-voltage drives.
  • Robust Reliability: Designed to withstand instantaneous high-current impacts and harsh industrial environments, ensuring stable operation in critical processes like petrochemicals or mining.
  • Simplified Drive Design: Its rugged characteristics allow for simpler snubber circuits and highly reliable, fuse-less inverter designs.

Application Areas

  • Medium Voltage AC Drives: Core power module for ABB ACS1000 series and similar medium-voltage inverters.
  • Heavy Industry Motor Control: Precise speed and torque control for large compressors, pumps, fans, and extruders.
  • Power Systems: Static Var Compensators (SVC) and reactive power compensation for grid stability.
  • Transportation Infrastructure: Power conversion systems for electrified railways and high-power EV charging stations.

Brand-Related Product Recommendations

  • 5SHX2645L0004: Another widely used ABB IGCT module for medium-voltage drive applications.
  • 5SDF0860H0003: ABB Press-Pack IGBT module, often used in newer high-power converter topologies.
  • ACS1000 Series Complete Drive: The flagship medium-voltage drive system that natively utilizes this IGCT module.
  • ABB IGCT Gate Drive Units: Essential配套 control boards required to properly trigger and protect the 5SHX0445D0001.

Installation and Maintenance

Installation:
  1. Preparation: Ensure the drive system is completely powered down, locked out, and all DC-link capacitors are fully discharged.
  2. Thermal Interface: Apply a uniform, thin layer of high-quality thermal grease to the IGCT baseplate. Mount the device using the specified torque sequence to ensure even pressure and optimal heat transfer to the heatsink.
  3. Gate Connection: Carefully connect the gate drive unit to the IGCT’s gate terminals. Ensure all connections are secure and free from debris to prevent misfiring.
  4. Mechanical Assembly: Assemble the clamping structure according to ABB’s mechanical guidelines to prevent mechanical stress on the semiconductor die.
Maintenance:
  • Thermal Monitoring: Regularly monitor the heatsink temperature and cooling system (fans/water pumps) to ensure the IGCT operates within its safe thermal limits.
  • Visual Inspection: During scheduled shutdowns, inspect the module and surrounding area for signs of overheating, discoloration, or dust accumulation.
  • Electrical Testing: Perform routine insulation resistance tests and verify gate drive signal integrity to ensure reliable triggering.
  • Replacement: If an IGCT fails, it is highly recommended to replace it with a genuine ABB spare and inspect the associated gate drive unit and snubber components, as they may have been stressed during the failure event.
