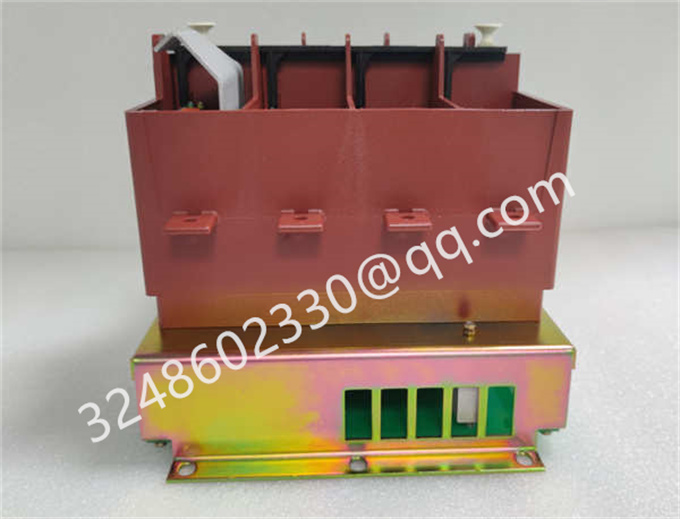

The core features and functions of ABB KUC755AE105 (order number 3BHB005243R0105) as a key module for high-voltage frequency conversion board and excitation control system include:

1、 Hardware Features
Basic Parameters
Voltage: Supports 24V DC power supply, and can be adapted to 120V AC power supply in some scenarios to meet the needs of different industrial environments.
Size and weight: The module size is 36 × 19 × 10cm, with a weight of approximately 2kg. It adopts a compact design, making it easy to integrate into the excitation control system cabinet.
Interface and Scalability: Equipped with standard industrial interfaces, it supports connection with devices such as voltage transformers and miniature circuit breakers, achieving linkage between signal acquisition and protection functions.
Protection and reliability
Environmental adaptability: It can operate stably at room temperature and has industrial grade anti-interference ability, suitable for strong electromagnetic interference scenarios such as power plants and steel mills.
Protection level: Some models support 7H surface hardness and scratch resistant design, extending the service life of the module.
2、 Core functions
Excitation control function
Excitation power regulation: As the core module of the excitation regulator, it precisely controls the output of the excitation power unit to provide stable DC excitation current for the synchronous generator rotor, ensuring stable generator voltage.
Dynamic response optimization: supports rapid adjustment of excitation current, improves the stability of parallel units in power systems, especially suitable for scenarios where modern power systems require high stability limits for units.
Protection and monitoring functions
Delay phase overvoltage protection: Continuously monitor the three-phase voltage. When the phase voltage exceeds the preset value and continues to exceed the set time delay, the protection signal is triggered to prevent insulation damage to electrical equipment.
Fuse fault monitoring: Based on the principle of zero sequence measurement, detect AC voltage secondary circuit faults, block voltage related functions such as distance protection through output signals, and avoid misoperation.
Special function input: Supports connecting auxiliary contacts of miniature circuit breakers to ensure accurate execution of protection functions even in the event of simultaneous interruption of three-phase voltage.
Logical operation ability
Byte/Word/Double Word Logical Operations: Supports byte level logical operations such as ANDB, ORB, XORB, as well as word level operations such as ANDW, ORW, XORW, enabling programming and execution of complex control logic.
Double word logic extension: meets high-precision control requirements, such as dynamic adjustment of excitation system parameters, through commands such as ANDD, ORD, XORD, etc.
3、 Application scenarios
power system
Widely used in generator excitation control systems to enhance unit stability and reduce the risk of power system failures.
Suitable for various power generation scenarios such as hydropower, thermal power, and nuclear power, meeting the excitation control requirements of generators with different capacities.
Industrial Automation
In heavy industries such as steel mills, cement plants, and ships, as a high-voltage variable frequency board, it drives large motor equipment to achieve energy conservation and precise control.
Support the automation upgrade of infrastructure such as municipal pumping stations and air conditioning refrigeration systems to improve operational efficiency.
new energy sector
Applied to wind power generation systems, optimizing generator output characteristics through excitation control to improve wind energy conversion efficiency.
In energy storage systems, combining high-voltage frequency conversion technology to achieve battery charging and discharging management can extend equipment life.
