Product Overview
Project Details

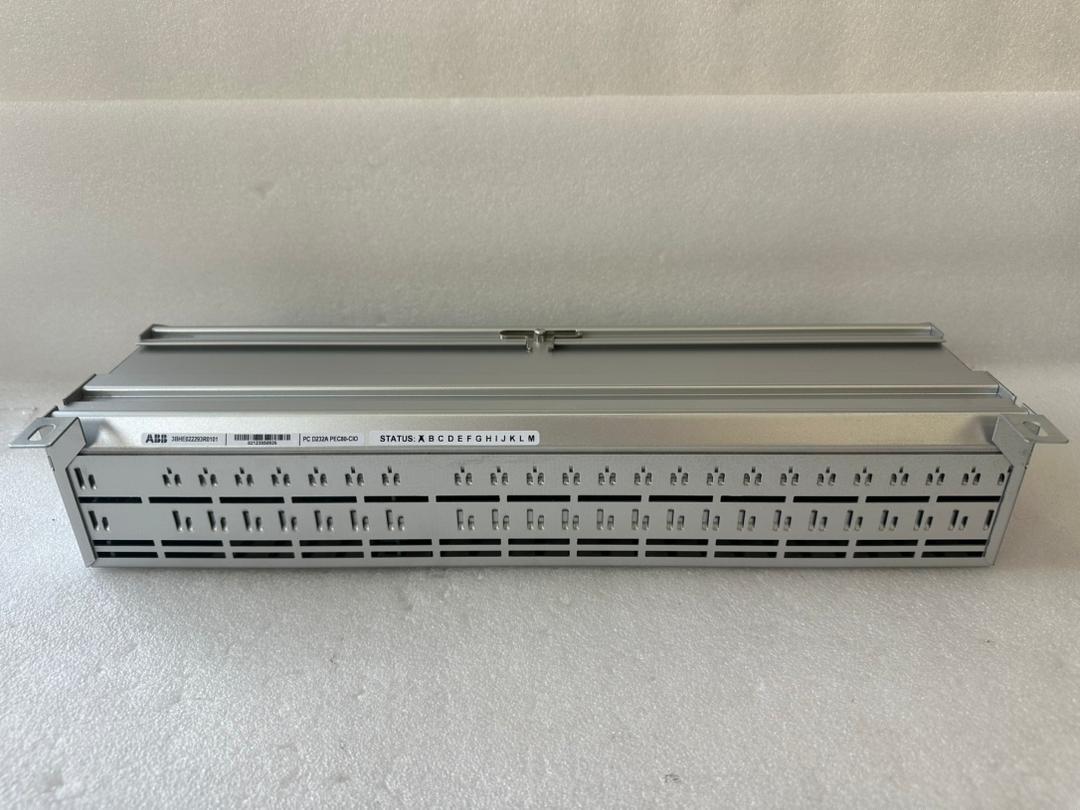

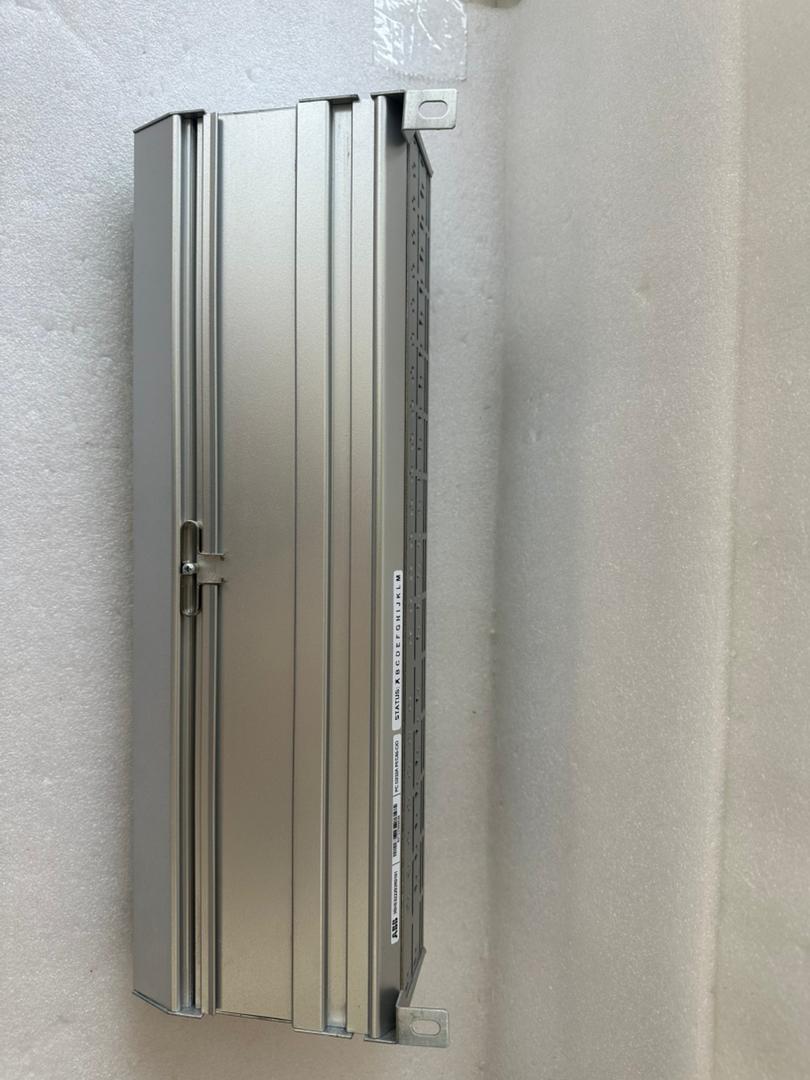

Complete model PCD235A101
Order number 3BHE03205R0101
Nickname PCD235B101 (upgraded version, similar in functionality)
Belonging to ABB Unitrol excitation system series
Hardware Platform AC800PEC Industrial Controller
Manufacturer ABB
The core CIO (input/output) control module of the synchronous generator excitation system is located, which is the «nerve center» of the excitation system

🔧 core functionality
one ️⃣ Excitation regulation and control
Function Description
Automatic Voltage Regulation (AVR) PID+PSS (Power System Stabilizer), steady-state voltage accuracy ± 0.2%, dynamic response ≤ 200ms
Reactive power control supports constant reactive power/constant power factor regulation, responding to grid dispatch instructions
PSS power system stabilizer suppresses low-frequency oscillations and enhances transient stability of the power grid (key function of large units)
two ️⃣ protection mechanism
⚡ Overexcitation/Underexcitation Limit
📉 V/Hz limit
🌡️ Excitation current/voltage limitation, rotor temperature protection
🔌 Rapid demagnetization/demagnetization in case of malfunction, triggering relay output to cut off trigger pulse
Built in I ² t power range monitoring, automatic current reduction or shutdown alarm for thyristor limit temperature
three ️⃣ Communication and Integration
Interface Protocol
Ethernet Modbus TCP, EtherNet/IP
Serial communication RS485 (Modbus RTU), PROFIBUS-DP, Device Net
Integration capability with DCS/MES/SCADA, supporting remote monitoring and parameter download
📐 I/O hardware specifications
Interface Type Specification Core Purpose
Analog input (AI) 3-channel, ± 10V/± 20mA, accuracy ± 0.1% excitation voltage/current, terminal voltage, rotor temperature
Analog output (AO) 3 channels, ± 10V, accuracy ± 0.2% excitation current command, voltage set value, PSS compensation signal
Digital input (DI) 12 channels, 24/48VDC demagnetization switch position, fan status, emergency stop signal, etc
Relay output (DO) 16 channels, 250VAC/5A demagnetization switch control, fan start stop, fault alarm, interlock output
Safety interface independent hard wired safety circuit emergency stop, fault interlock, quickly cut off trigger pulse
🏭 technical parameters
Parameter values
Processor AC800PEC architecture, including FPGA control module PD D205 A
Power supply redundancy 24VDC industrial power supply, dual machine hot standby
Working temperature -25 ℃~+70 ℃ (industrial grade wide temperature design)
Protection level IP20 (cabinet installation)
Weight approximately 1.5 kg
The external dimensions are approximately 381 × 152 × 76 mm (15 × 6 × 3 inches)
Redundancy capability 1:1 hardware redundancy, switching time ≤ 200ms, undisturbed switching
Isolation characteristics: Channel to channel/channel to ground electrical isolation, resistant to strong electromagnetic interference (EMI)

🎯 Typical application scenarios
Scenario description
🔥 Excitation control and reactive power regulation of 10MW~1000MW units in thermal power generation
💧 Hydroelectric Power Unitrol 1000 Series Hydroelectric Generator Excitation System
☢️ Excitation control of synchronous generators for nuclear power generation
🏭 Stable voltage and optimized reactive power distribution for industrial self owned power plants
🏗️ Excitation Control and Safety Interlocking for Steel/Chemical/Cement Self owned Power Plants
🌱 Excitation control of new energy wind power, photovoltaic and other power generation systems
⚠️ Common faults and solutions
Possible causes and solutions for fault phenomena
Excitation without output power failure, failure to meet excitation conditions, module damage, power supply inspection, confirmation of excitation parameters, module replacement
Improper PID parameters due to large voltage fluctuations, PSS not being put into operation, optimized PID parameters for sensor faults, PSS being put into operation, calibrated sensors
Communication interruption, communication line failure, protocol mismatch, module address error. Check the circuit, verify protocol parameters, and modify the address
🔄 Comparison with the same series
Model positioning, adaptation, power interface differences
PCD235A101 (this product) excitation CIO control module 10-1000MW 3AI/3AO/16DO, redundant+safety circuit
Simplify IO and basic AVR functions for small and medium-sized units in the basic excitation control module of PCD231B101
📝 Key points for installation and debugging
Before installation: Conduct a comprehensive inspection of the components, confirm that the model/serial number matches the order, and read the ABB installation manual
Environmental requirements: Ensure that temperature, humidity, and electromagnetic interference meet the requirements, and reserve heat dissipation space
Wiring: Connect the power, signal, and control circuits correctly according to the wiring diagram to ensure they are secure and reliable
Communication configuration: Ensure that parameters such as baud rate and address are consistent with the system
Power on test: First check the power supply voltage with a multimeter, and then gradually test various functions
Joint debugging: Connect to the power system for joint debugging, observe the stability of operation
