AFV30D-A41252 YOKOGAWA CENTUM VP Dual Field Control Unit (FCU)

  • CP461 / CP471 Processor Module: The core processing board housed within the AFV30D FCU chassis.
  • PW482 / PW484 Power Supply Module: Redundant power supply units designed for the AFV30D rack.
  • AAB10D / AAB11D FIO Node Unit: Field I/O nodes that connect directly to the AFV30D FCU for field signal acquisition.
  • HIS (Human Interface Station): Operator workstations running the CENTUM VP HMI software for process monitoring and control.
Классификация:

Введите текст заголовка

  • Brand: YOKOGAWA
  • Model: AFV30D-A41252
  • Product Title: YOKOGAWA CENTUM VP Dual Field Control Unit (FCU)
  • Product Name: 19-Inch Rack-Mount Dual Redundant Controller for DCS Systems

Product Description

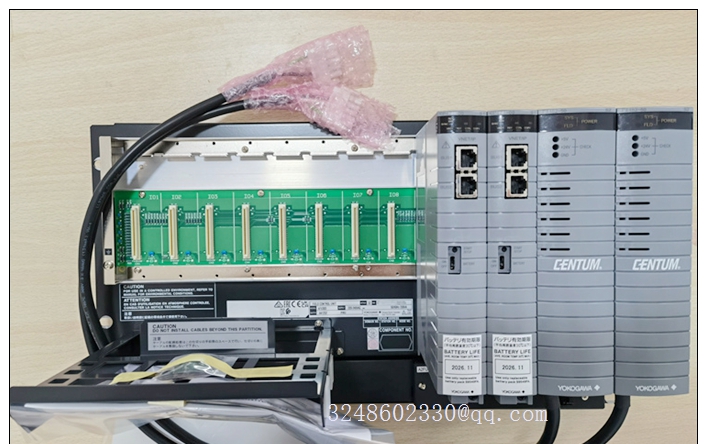

The YOKOGAWA AFV30D-A41252 is a high-reliability Dual Field Control Unit (FCU) designed as the core processing component for the YOKOGAWA CENTUM VP Distributed Control System (DCS). Engineered for continuous process control in mission-critical industrial environments, this 19-inch rack-mounted controller features a fully redundant architecture, including dual processors, dual power supplies, and dual Vnet/IP communication networks.
The «A41252» suffix specifically defines its configuration: it is a standard type unit with dual redundant network/IP and dual redundant power supplies, operating on a 220-240V AC power source. This FCU is responsible for executing high-speed, real-time control logic, acquiring field data via FIO (Field I/O) networks, and ensuring seamless, bumpless transfer in the event of a component failure, thereby guaranteeing maximum plant availability.

AFV30D-A41252

Technical Specifications

  • Product Type: Dual Field Control Unit (FCU)
  • Control System: YOKOGAWA CENTUM VP
  • Processor: VR5532 (350 MHz)
  • Main Memory: 128 MB (Battery-backed for up to 72 hours during power loss)
  • Power Supply: 220-240V AC (Dual Redundant)
  • Network Interface: Vnet/IP (Dual Redundant Ethernet)
  • Field I/O Interface: FIO (Field Network I/O)
  • Mounting Style: 19-inch Standard Rack
  • Max Connectable Nodes: Up to 13 I/O nodes per FCU
  • Protection Class: IP20
  • Operating Temperature: 0°C to +50°C

Key Features and Benefits

  • High-Availability Redundancy: Features a comprehensive dual-redundant design (CPU, Power, and Network). In the event of a failure, the standby system takes over seamlessly with a switching time of less than 10ms, ensuring zero process disruption.
  • Real-Time High-Speed Processing: Utilizes a high-performance PowerPC-based processor and a Real-Time Operating System (RTOS) to achieve millisecond-level control cycles, essential for complex and fast-responding process loops.
  • Seamless System Integration: Acts as a native component of the CENTUM VP ecosystem, integrating perfectly with YOKOGAWA’s I/O modules, operator stations, and engineering tools for a unified plant management platform.
  • Flexible I/O Connectivity: Supports YOKOGAWA’s FIO (Field Network I/O) and N-IO (Network I/O) systems, allowing for flexible, software-configurable I/O channels and reduced wiring costs.
  • Robust Industrial Design: Built to withstand harsh industrial environments with high immunity to electrical noise, vibration, and corrosive gases (ISA G3 standard options available).

Application Areas

  • Oil & Gas Refining: Continuous process control for distillation columns, reactors, and pipeline monitoring.
  • Petrochemical Plants: High-precision control for polymerization, cracking, and blending processes.
  • Power Generation: Boiler, turbine, and balance-of-plant control in thermal and combined-cycle power stations.
  • Chemical Processing: Batch and continuous control for specialty chemicals, pharmaceuticals, and fertilizers.
  • Water & Wastewater Treatment: Large-scale automation for filtration, dosing, and distribution systems.

Brand-Related Product Recommendations

  • CP461 / CP471 Processor Module: The core processing board housed within the AFV30D FCU chassis.
  • PW482 / PW484 Power Supply Module: Redundant power supply units designed for the AFV30D rack.
  • AAB10D / AAB11D FIO Node Unit: Field I/O nodes that connect directly to the AFV30D FCU for field signal acquisition.
  • HIS (Human Interface Station): Operator workstations running the CENTUM VP HMI software for process monitoring and control.

Installation and Maintenance

Installation:
  1. Rack Mounting: Secure the AFV30D-A41252 unit into a standard 19-inch control cabinet using the provided mounting brackets. Ensure adequate clearance for front-to-back cooling airflow.
  2. Redundant Wiring: Connect both the primary and secondary Vnet/IP network cables and the dual AC power supplies. Proper termination and shielding are critical for network reliability.
  3. I/O Connection: Connect the FIO bus cables to the designated rear connectors, linking the FCU to the field I/O nodes.
  4. System Configuration: Use the CENTUM VP System Configuration tool to define the FCU’s role, assign IP addresses, and download the control logic and I/O mapping.
Maintenance:
  • Redundancy Verification: Periodically perform a controlled switchover test (during a safe maintenance window) to verify that the standby CPU and power supplies can take over without process interruption.
  • Battery Replacement: The FCU contains a backup battery for memory retention. Replace the battery according to YOKOGAWA’s recommended schedule (typically every 3-5 years) to prevent loss of control logic during extended power outages.
  • Cooling System Check: Inspect and clean the rack’s cooling fans and air filters regularly to prevent overheating of the processor and power modules.
  • Diagnostics Monitoring: Utilize the CENTUM VP system’s built-in diagnostics to continuously monitor the health status of the FCU, including CPU load, power supply voltage, and network communication errors.
  • Firmware Updates: Apply the latest firmware and system software patches from YOKOGAWA to benefit from performance enhancements, bug fixes, and security improvements.
