Bently 330130-040-03-05 (3300XL 8mm Armored Extension Cable)

Armored extension cable finished product

Actual shooting of cable connectors

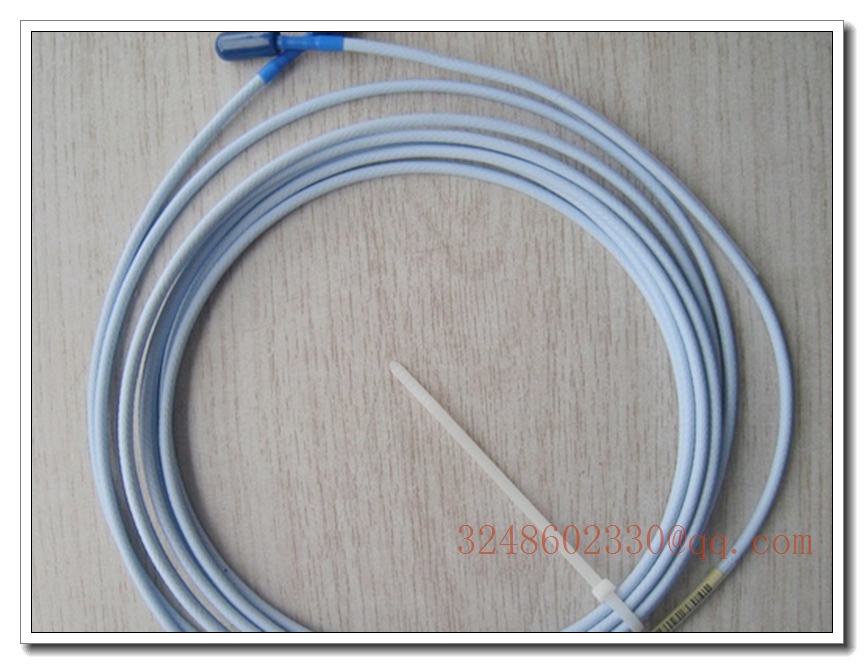

Cable roll
1、 Model segmentation definition
330130:3300XL series eddy current probe special extension cable
040: The total length of the cable is 4.0 meters
03: Stainless steel braided armor+two end joint protection cap (00 ordinary non armor, 01 single armor, 02 sheathed non armor, 03 armor+joint protection)
05: Intrinsic safety explosion-proof certification (ATEX/IECEx/CSA Ex ia IIC T4, applicable for explosion-proof conditions)
2、 Supporting system (must match the total length of the preamplifier)
Paired with your previous model: 330180-51-05 (5-meter DIN preamplifier)
The probe comes with a built-in cable and a 4m extension cable, making the entire system 5m long. It is strictly prohibited to mix 3m/9m preamplifiers
Compatible probes: Full range of 8mm 330103/330104 standard eddy current probes
Adaptation card: 3500/42M, 3500/45M, 3500/53M shaft vibration/displacement monitoring card

3、 Key electrical parameters
table
Project parameters
Cable specification: 50 Ω high-frequency coaxial shielded cable, armored with stainless steel braided protection, resistant to rolling and wear
System sensitivity 7.87V/mm (200mV/mil), standard calibration value for 8mm probe
Frequency response 0-10kHz, suitable for shaft vibration, axial displacement, and key phase measurement
Working temperature -35 ℃~+85 ℃, suitable for explosion-proof cabinets and high-temperature areas of the unit
ClickLoc gold-plated aviation connector with self-locking buckle to prevent loosening
4、 Structural and operational advantages
03 suffix armor: outer stainless steel braided armor, suitable for harsh environments such as compressor and turbine nacelle dragging, oil pollution and collision, superior to ordinary 00 non armored cables
05 Explosion proof: Special for chemical and petrochemical explosion-proof zone 1/2 units, standard for natural gas booster and hydrogenation compressor
5、 Usage scenarios
Thermal power turbine, chemical centrifugal compressor, large fan pump, gas turbine, monitoring shaft radial vibration, axial play, key phase speed, connected to 3500 frame TSI protection system.
6、 Source of goods and substitutes
The original factory has not stopped production; Domestic substitute model: 330130-040-03-CN, with completely interchangeable dimensions, wiring, and parameters for direct installation.
