BENTLY 3500/50 133434-01
Full name: 3500/50M Tachometer Module Dual Channel Tachometer Monitoring Module
Belonging to Baker Hughes Bently Nevada 3500 Unit TSI Protection System

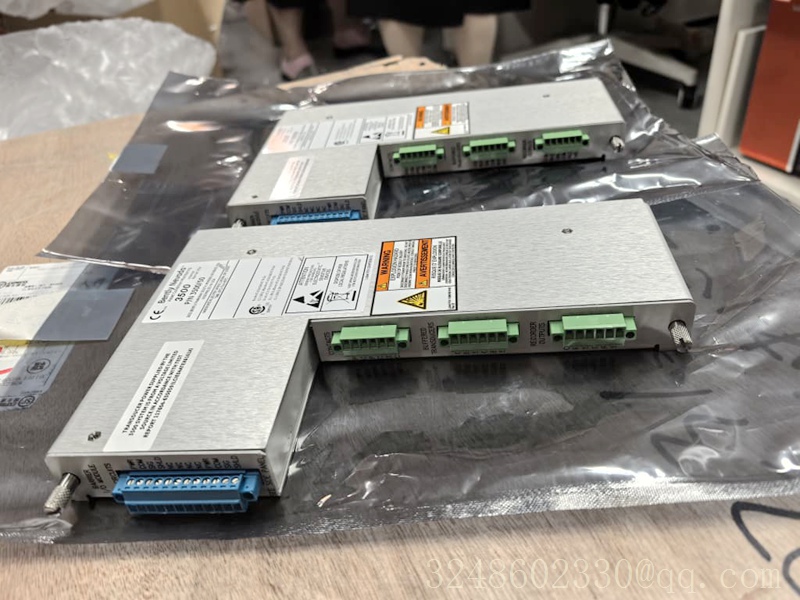

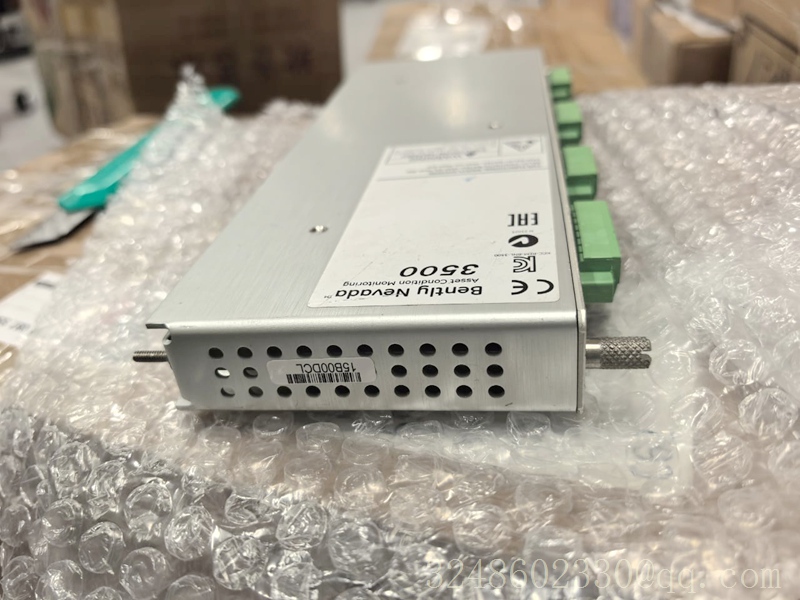

Physical 3500/50 module
1、 Basic Overview
3500/50M dual channel speed monitoring card, 133434-01 is an external terminal I/O rear card, which must be used in conjunction with the 3500/50M front card as a complete set;
Collect key phase pulse signals, measure shaft speed, rotor acceleration, and rotation direction, and output conditioned Keyphasor key signals to other vibration monitoring cards in the rack. The rack does not require additional separate key phase modules.
⚠️ Important distinction
3500/50M ≠ 3500/53
3500/50M: Conventional speed monitoring, key phase signal acquisition (not used for overspeed trip protection)
3500/53: Dedicated overspeed protection module, supporting TMR triple redundancy and safety shutdown interlock
2、 Core hardware specifications
Channel: 2 independent speed input channels
Compatible with sensors
✅ 3300XL eddy current key phase probe (recommended, supports reverse and zero speed detection)
✅ Magnetic resistance speed sensor (not recommended for zero speed and rotation direction judgment)
Configurable monitoring function
Speed monitoring, high and low speed set point alarm, speed range alarm
Zero speed detection (recognition of turning state)
Rotor lifting speed (acceleration) alarm
Reverse rotation direction alarm
Featured Features
Peak holding: Record the highest speed and reverse peak, support manual reset
4-20mA analog recorder output per channel, connected to DCS
Channel sensor disconnection and short circuit hardware self diagnosis
Panel indicator lights: OK, TX/RX communication, Bypass
Installation: 3500/05 rack single slot, supports hot swapping
Power consumption: approximately 5.8W, powered by the backplane
3、 Key points for procurement matching (easily prone to pitfalls)
Model: 3500/50M front card+I/O rear card 133434-01 (external European terminal)
There are also built-in terminal versions with different part numbers for the rear card. The front and rear boards must be matched as a set and cannot be interchanged at will
Industry misconception: 3500/50M cannot be used as an overspeed protection module; Please choose 3500/53 for the overspeed interlock project of the unit.
4、 Lifecycle information
Original factory continuous supply model; Market source: New original and disassembled testing spare parts are in circulation
Warranty reference: Brand new original 12 months, disassembled spare parts 3-6 months
5、 Typical application scenarios
TSI systems for steam turbines, gas turbines, centrifugal compressors, and air separation units;
Provide speed values and a shared key phase reference signal for the entire frame for vibration phase analysis.
