Bently Nevada 3500/91M (Order Model: 3500/91-02-00, Body PN: 190782-01)
Full name: EGD Ethernet Global Data Communication Gateway Module
Bentley 3500 TSI system dedicated Ethernet gateway, specifically designed to interface with control systems such as GE Mark VIe that support EGD protocol

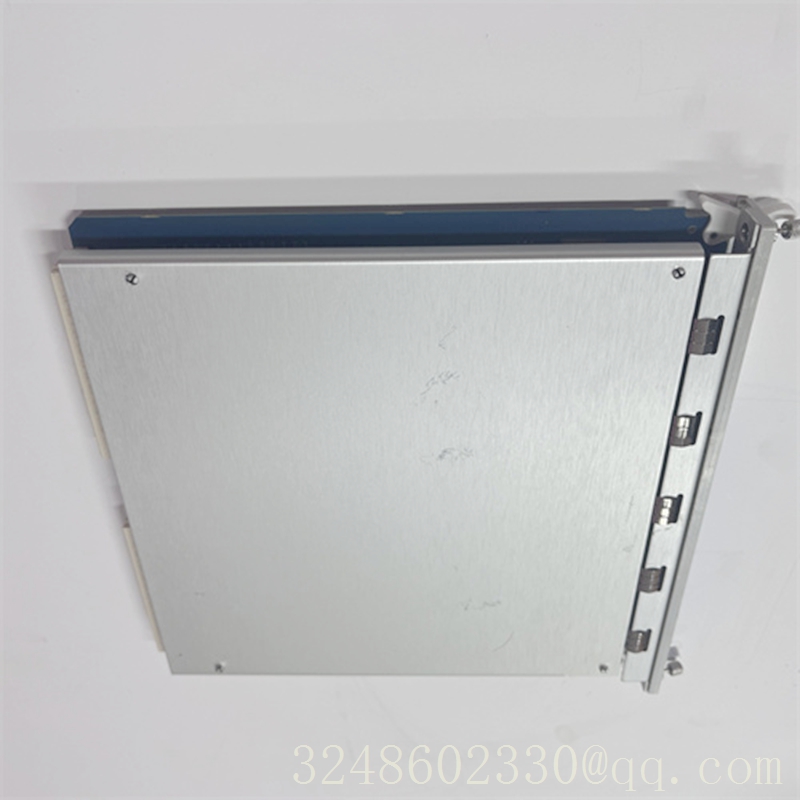

3500/91M front

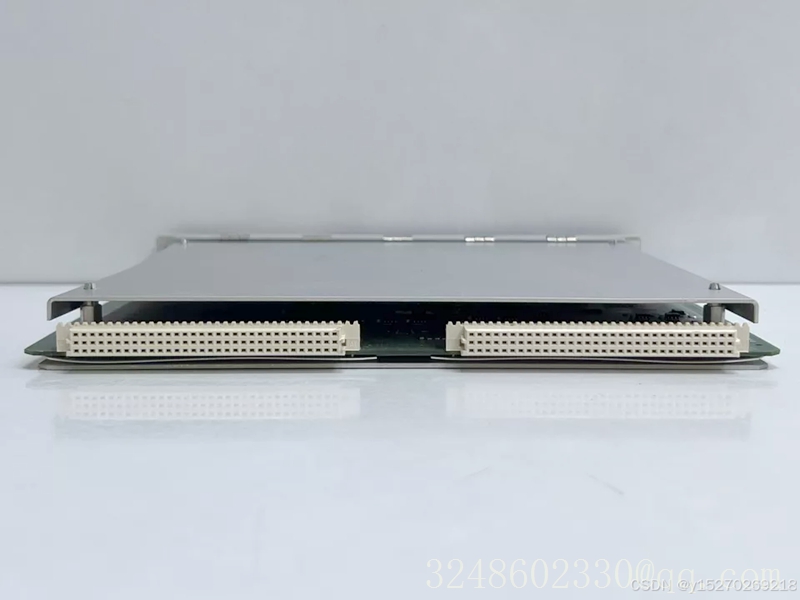

Module back label
1、 Summary of Model Information
Complete order model: 3500/91-02-00
Hardware body part number: 190782-01
Module abbreviation: 3500/91M (commonly abbreviated as 3500/91 in the industry)
Structural features: Integrated module, no independent separated rear I/O card, Ethernet interface directly integrated into the module backplane
2、 Core functional positioning
Exclusive Protocol: EGD (Ethernet Global Data V2.01)
Used for high-speed real-time data exchange between 3500 rack and GE Mark VIe turbine control system;
Relying on UDP/IP Ethernet to achieve producer/consumer data exchange.
Transmission Content
All steady-state measurement values, alarm status, module diagnostic information, alarm suppression/reset instructions of the rack;
⚠️ Does not support transmission of vibration waveforms, spectra, and axis trajectories; It also does not support Modbus protocol.
Supplementing the differentiation of the three major communication cards (the top priority in procurement)
Can typical module protocol docking systems transmit waveforms
3500/91M EGD protocol GE Mark VIe ❌ Only steady-state values
3500/92 Modbus TCP/RTU Universal DCS/PLC ❌ Only steady-state values
3500/22M (TDI) Bently proprietary TDI protocol System1 diagnostic software ✅ Waveform, spectrum, transient recording
Engineering standard matching:
Connect GE Mark VIe → select 3500/91M
Ordinary third-party DCS (Siemens/Emerson, etc.) → Choose 3500/92
Vibration fault analysis and waveform recording are required → 3500/22M must be configured
3、 Key hardware parameters
Network interface: RJ45 10/100Base TX adaptive Ethernet
Communication protocol: EGD v2.01, UDP/IP
Power consumption: Typical 7.4W, powered by the rack backplane
Appearance: 3500/05 rack standard full height card, supports hot swapping
Indicator lights: OK (module normal), COMM (network communication)
Working environment: -30 ℃~+65 ℃, 5%~95% RH, no condensation
4、 Lifecycle information
Continuous supply from the original factory; Both brand new original equipment and disassembled spare parts are in circulation in the market
Warranty reference: Brand new original 12 months, disassembled spare parts 3-6 months
5、 Typical application scenarios
Thermal power/gas turbine project, data exchange between 3500 TSI protection rack and GE Mark VIe unit control system;
Mostly used for integrated monitoring solutions of large steam turbine generator units.
