Bently Nevada 3500/15 127610-99 AC Power Supply Module

This unit is a dedicated AC power component in the Bently Nevada 3500 machinery protection system, purpose-built to convert industrial AC input into regulated DC power for all monitoring, I/O and interface modules inside the 3500 rack, forming a reliable power foundation for continuous condition monitoring of critical rotating equipment.

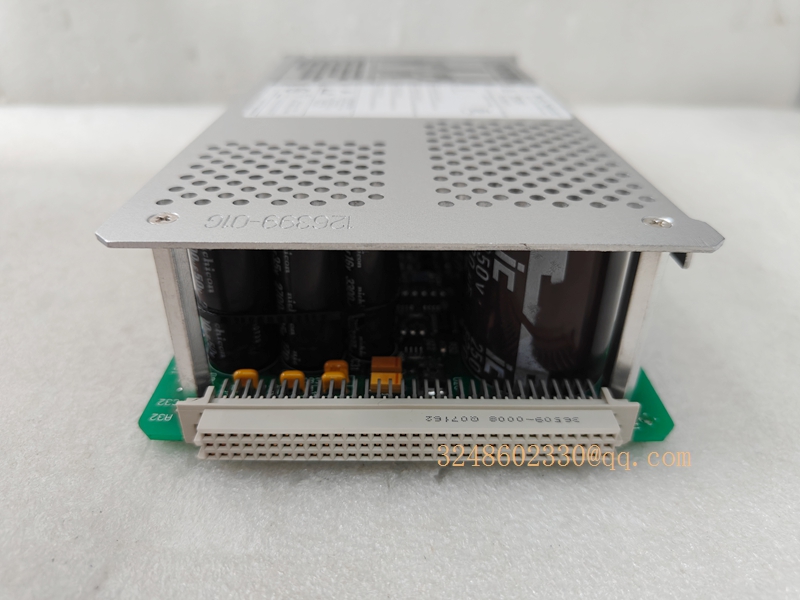

3500/15 127610-99

3500/15 127610-99

1. Core Specifications

• ‌Official Part Number‌: 127610-99
• ‌Product Family‌: 3500/15 Power Module Series
• ‌Manufacturer‌: Bently Nevada (Baker Hughes)
• ‌Physical Form Factor‌: Half-height module, occupying one dedicated power slot on the far left of the 3500 rack
• ‌Net Weight‌: Approximately 0.42 kg (0.93 lb)
• ‌Overall Dimensions‌: 120.7 mm × 50.8 mm × 251.5 mm (4.75 in × 2.0 in × 9.9 in)
• ‌Country of Origin‌: United States
• ‌Standard Warranty‌: 12 months for brand new original units

2. Key Technical Parameters

• ‌Input Voltage Range‌: 85–264 VAC, supporting global standard industrial AC power supply systems
• ‌Input Frequency‌: 47–63 Hz, adapting to both 50Hz and 60Hz power grid standards
• ‌Stabilized Output‌: 24 VDC, fully compatible with the power demand of all modules in the 3500 system
• ‌Maximum Output Current‌: 11.0 A, capable of supporting a fully populated 3500 rack under full load conditions
• ‌Operating Temperature‌: -30°C to +65°C (-22°F to +150°F)
• ‌Storage Temperature‌: -40°C to +85°C (-40°F to +185°F)
• ‌Humidity Tolerance‌: 95% non-condensing, adapting to high-humidity industrial environments
• ‌Isolation Rating‌: 1500 VAC electrical isolation between input and output sides, meeting industrial safety standards

3. Distinctive Features

• ‌Redundancy Compatibility‌: A single 3500 rack can install 1 or 2 units of this module. Under dual-module configuration, the two units share the load automatically, and the backup unit will take over seamlessly once the primary power supply fails
• ‌Hot-Swap Capability‌: Under redundant operation, the module can be inserted or removed directly without shutting down the entire 3500 system, enabling zero-downtime maintenance and replacement

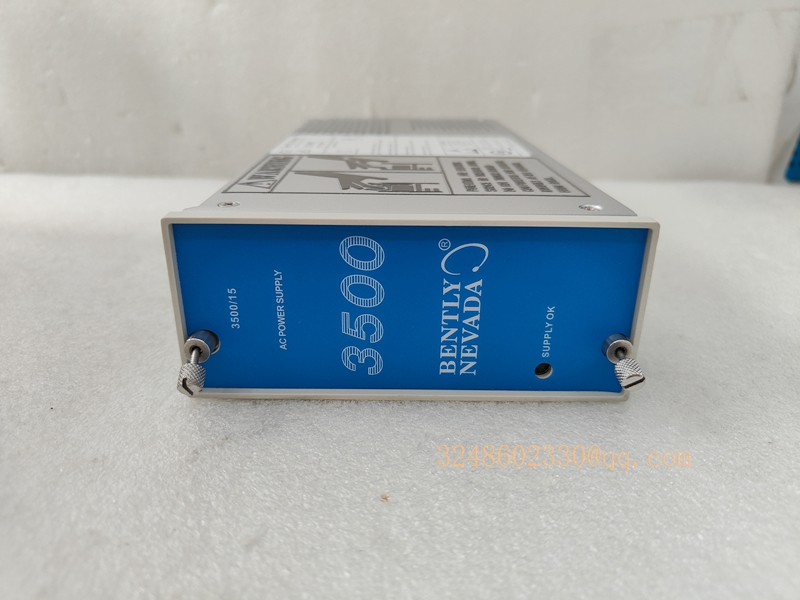

• ‌Built-In Self-Monitoring & Diagnostics‌: The module continuously verifies that its output voltage stays within the specified range. The front-panel «Supply OK» LED provides instant visual confirmation of normal operation
• ‌Rugged Industrial Design‌: Manufactured to Bently Nevada’s strict reliability standards, it can withstand harsh vibration, electromagnetic interference and temperature fluctuations common in heavy industrial sites
• ‌Integrated Protection Mechanisms‌: Equipped with built-in overload, short-circuit and over-temperature protection, it automatically triggers protection actions under abnormal conditions to avoid damaging other precision monitoring modules in the rack
• ‌Wide Input Compatibility‌: Tolerates large voltage fluctuations of industrial AC power supplies without triggering unexpected system shutdowns, eliminating the need for extra external power adapters

4. Installation Guidelines

• ‌Pre-Installation Preparation‌: Confirm the 3500 rack is properly grounded, verify the field AC power supply matches the module’s voltage and frequency rating, and power off the entire rack before handling the unit
• ‌Mounting Steps‌: Align the module with the dedicated power slot on the far left of the 3500 rack, slide it in slowly, and ensure the rear backplane connector is fully and securely mated
• ‌Wiring Operation‌: Connect the field AC power cables to the module’s internal terminals strictly following the L/N/PE polarity marks, and use AC-rated cables that meet local industrial electrical safety codes
• ‌Redundancy Setup‌: If dual power supply configuration is required, install the second 127610-99 module in the adjacent dedicated power slot
• ‌Post-Installation Verification‌: Restore the main power supply, confirm the front-panel «Supply OK» LED illuminates normally, and check that all other modules in the 3500 rack power up and enter normal operation status

5. Maintenance & Troubleshooting

• ‌Routine Maintenance‌: No frequent disassembly or internal calibration is required. Periodically check that the module is securely seated in the rack, the power wiring terminals remain tight, and the unit is free of excessive dust buildup that may block heat dissipation
• ‌Fault Diagnosis‌: If the status LED turns off or the 3500 system reports a power loss alarm, first confirm the field AC input power is normal, then check if the module backplane connector has loosened. For persistent failures, contact authorized Bently Nevada service personnel for professional inspection
• ‌Safety Reminder‌: Always disconnect the main AC power of the entire 3500 system before performing any maintenance, wiring or replacement operations on the module, and strictly follow AC high-voltage operation safety protocols

6. Compatible Same-Series Models

• ‌3500/15 127610-01‌: Standard AC power module in the 3500/15 family, with identical rack compatibility and installation specifications
• ‌3500/15 106M1079-01‌: New-generation universal AC power unit, optimized for the latest 3500 system platforms
• ‌3500/15 106M1081-01‌: Upgraded AC power module with enhanced EMC performance for high-interference industrial sites
• ‌3500/15 129489-01‌: High-voltage DC power module, designed for 85–250 VDC industrial power supply scenarios
• ‌3500/15 133300-01‌: Low-voltage DC power module, adapting to 20–30 VDC industrial power supply environments
