Bently Nevada 3500/15 133292-01 is the core low-voltage DC power module of the Bently 3500 series mechanical protection system, designed specifically for harsh industrial environments, providing stable and reliable power support for the entire monitoring system.

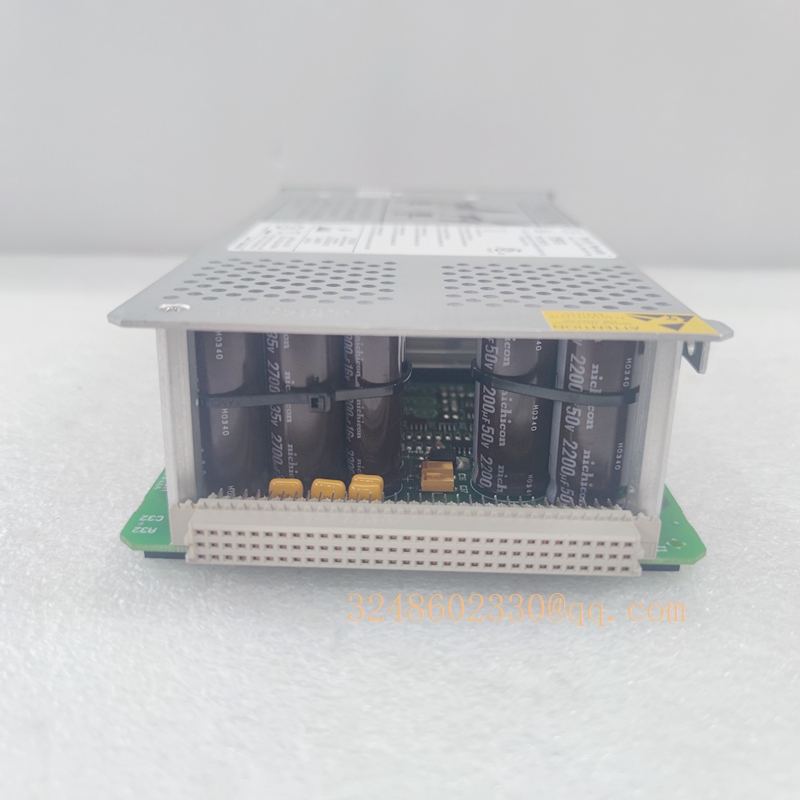

3500/15 133292-01

3500/15 133292-01

1、 Basic product information
Manufacturer: Bently Nevada
Product type: Low voltage DC power module
Adaptation System: Bently Nevada 3500 Series Mechanical Protection and Condition Monitoring System
Origin: France/United States
Warranty period: The brand new original product comes with a 12-month warranty
Dimensions: 120.7 × 50.8 × 251.5 mm
2、 Core technical parameters
Input voltage: Supports 24V DC low voltage DC input, some versions are compatible with 85-264V AC wide width AC input
Output characteristics: The output voltage and current support users to customize and adjust within a specified range. The standard output is 24V DC
Isolation level: The module isolation voltage reaches 1500VDC, ensuring power supply safety
Working temperature: -40 ° C to+70 ° C, suitable for extreme industrial conditions
Protection level: IP54, with basic dust and splash prevention capabilities
Communication support: Some versions are compatible with HART protocol and Foundation Fieldbus protocol
3、 Key functional characteristics
Dual power redundancy: supports two independent power inputs, seamlessly connects to the backup power supply in case of main power failure, greatly reducing the risk of shutdown
Multiple protection mechanisms: Built in overload, short circuit, and overheating protection functions, automatically triggering protection under abnormal working conditions to avoid damaging other components of the system
High conversion efficiency: low energy consumption and low heat generation, suitable for long-term continuous and uninterrupted operation scenarios
Modular design: Supports hot swapping and can be quickly installed and replaced within the 3500 system rack, simplifying maintenance processes
Status visualization: equipped with LED status indicator lights, operation and maintenance personnel can intuitively judge the running status of the module
Wide input compatibility: can withstand common power supply voltage fluctuations in industrial sites and adapt to industrial scenarios with different power supply standards
4、 Typical application scenarios
Core industries: widely used in fields such as electricity, oil and gas, petrochemicals, heavy manufacturing, etc
Core purpose: To supply power to 3500 series monitoring modules and support key functions such as vibration analysis, temperature monitoring, axial displacement measurement, and speed detection
Actual case: A refinery in the Middle East adopted this module redundancy configuration, eliminating power related faults in the compressor monitoring system and reducing annual downtime by 15%
5、 Key points for maintenance and use
Regular inspection: It is recommended to conduct a comprehensive inspection every 6 months to clean the surface dust of the module and confirm that the wiring terminals are securely fastened without looseness
Troubleshooting: Prioritize checking whether the input power voltage is within the rated range, and then determine the module’s own operating status through the LED indicator light
Installation specifications: During installation, anti-static protection should be taken into account, and sufficient heat dissipation space should be reserved around the module to avoid being arranged in close proximity to strong heating components
Spare parts management: It is recommended to configure redundant power modules for key unit scenarios to avoid a single power failure that could cause the entire monitoring system to lose power
