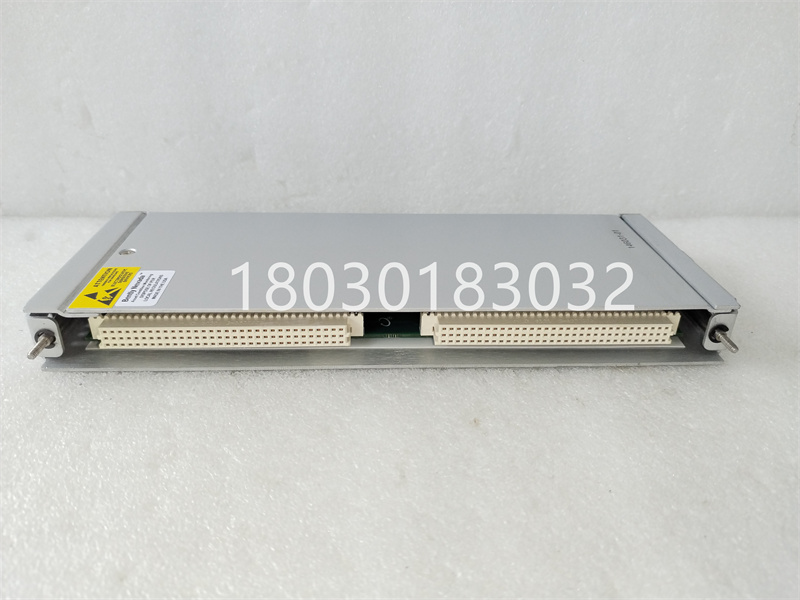

Bently Nevada 3500/22M — 146031-01 Transient Data Interface I/O Module
Product Overview
The 146031-01 is a 10Base-T/100Base-TX Ethernet I/O Module designed as an integral component of the Bently Nevada 3500/22M Transient Data Interface (TDI) system. It serves as the critical communication bridge between the 3500 machinery protection and monitoring system and host software platforms, including System 1 Condition Monitoring and Diagnostic Software and 3500 System Configuration Software.
By combining the functionality of a 3500/20 Rack Interface Module (RIM) with the data acquisition capabilities of a dedicated communication processor, the TDI enables seamless, real-time transmission of both static and dynamic machinery data over standard Ethernet infrastructure.
Key Features & Main Characteristics
| Feature | Description |
|---|---|
| Integrated Communication | Consolidates RIM and communication processor functions into a single rack slot, eliminating the need for external TDXnet processors. |
| Dual Data Capture | Standard static data collection; optional Channel Enabling Disk unlocks dynamic and high-resolution transient waveform capture. |
| Ethernet Connectivity | Auto-sensing 10Base-T/100Base-TX RJ-45 Ethernet port for flexible network integration. |
| Rack-Efficient Design | Occupies only one slot (Slot 1, adjacent to power supplies) in the 3500 rack. |
| USB Configuration Port | Front-panel USB-B port for local configuration and machinery data retrieval. |
| OK Relay Output | Rack status relay with standard or gold-plated contact options for enhanced reliability in low-current applications. |
| TMR Support | Compatible with Triple Modular Redundant (TMR) configurations via the 3500/22 TMR variant. |
| Ruggedized Construction | Certified for harsh industrial environments including hazardous area applications. |
Technical Specifications
General Parameters
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Series | 3500 Machinery Protection System |
| Module Type | Transient Data Interface I/O Module |
| Interface | 10Base-T / 100Base-TX Ethernet (Auto-sensing) |
| Power Consumption | 10.5 Watts |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
| Dimensions (H × W × D) | 241.3 mm × 24.4 mm × 99.1 mm (9.50 in × 0.96 in × 3.90 in) |
| Weight | 0.20 kg (0.44 lbs) |
| Rack Space | 1 full-height rear slot (paired with TDI main module in front slot) |
Communications & Protocols
| Interface | Details |
|---|---|
| Ethernet I/O | 10Base-T/100Base-TX, RJ-45 connector, IEEE 802.3 compliant; max cable length 100 m (328 ft) |
| Fiber Optic Option | 100Base-FX via MT-RJ connector (available on 146031-02/04 variants); max 2,000 m (6,560 ft) |
| Protocols | BN Host Protocol (for 3500 software suite); BN TDI Protocol (for System 1 software) |
| Front Panel USB | USB-B, 115.2 kbaud max, 5 m cable max |
Relay & I/O Contacts
| Contact | Specification |
|---|---|
| OK Relay (Standard) | 5 A @ 24 Vdc / 120 Vac; 120 W / 600 VA switched power |
| OK Relay (Gold-Plated) | Down to 1 mA @ 1 Vdc (for low-current logic interfaces) |
| System Contacts | Trip Multiply, Alarm Inhibit, Rack Reset (< 1 mAdc dry contact to common) |
Certifications & Compliance
-
CSA/NRTL/C: Class I, Division 2, Groups A, B, C, D; Class I, Zone 2
-
ATEX/IECEx: Ex II 3G, Ex nA nC ic IIC T4 Gc
-
EMC: EN 61000-6-2 (Immunity), EN 61000-6-4 (Emissions)
-
Electrical Safety: EN 61010-1
-
Maritime: ABS, DNV GL
-
RoHS: Directive 2011/65/EU compliant
Application Scenarios
The 146031-01 I/O Module is deployed across a broad spectrum of critical rotating machinery applications where continuous condition monitoring and predictive diagnostics are essential:
-
Power Generation: Gas and steam turbines, generators, and auxiliary rotating equipment.
-
Oil & Gas: Compressors, pumps, and expanders in upstream, midstream, and downstream operations.
-
Petrochemical & Refining: Critical process pumps, motors, and centrifugal compressors.
-
Steel & Cement: Large drive motors, fans, and rolling mill machinery.
-
Marine & Offshore: Propulsion systems and platform rotating equipment requiring ABS/DNV certification.
Specific Data Collection Capabilities
| Capability | Description |
|---|---|
| Steady-State Monitoring | Continuous collection of static values (amplitude, phase) from all connected monitors. |
| Transient / Waveform Data | High-resolution waveform capture for up to 48 channels with configurable synchronous sampling rates (16 to 1024 samples/rev). |
| Startup / Coastdown Analysis | Speed- and time-based data collection during machine acceleration and deceleration cycles. |
| Alarm Event Recording | Pre- and post-alarm static values and waveform data capture for root-cause analysis. |
| Keyphasor Integration | Supports up to four system Keyphasor signals; speed range up to 100,000 rpm (depending on channel count). |
Compatible Components & Supporting Accessories
Core System Modules
| Part Number | Description |
|---|---|
| 138607-01 | 3500/22M Standard TDI Main Module |
| 138607-02 | 3500/22M TMR TDI Main Module (for Triple Modular Redundancy) |
| 146031-01 | 10Base-T/100Base-TX I/O Module (Copper Ethernet) |
| 146031-02 | 100Base-FX I/O Module (Fiber Optic Ethernet) |
| 146031-03 | 10Base-T/100Base-TX I/O Module with Gold-Plated OK Relay Contacts |
| 146031-04 | 100Base-FX I/O Module with Gold-Plated OK Relay Contacts |
| 147364-01 | 3500 Buffered Signal Output Module |
Software & Configuration
| Item | Description |
|---|---|
| System 1 Software | Bently Nevada condition monitoring and diagnostic platform |
| 3500 Configuration Software | Rack setup, monitor configuration, and system commissioning |
| 3500 Data Acquisition Software | Real-time data logging and trending |
Cabling & Accessories
| Part Number | Description |
|---|---|
| 138131-XXX | Shielded Category 5 Ethernet cables, RJ-45, various lengths (6 ft to 320 ft) |
| 161756-XXX | 100Base-FX fiber optic cables, MT-RJ female connectors, up to 1,300 ft |
| 123M4610 | 10 ft A-to-B USB cable (isolated, for front-panel configuration) |
| 00580441 | 3-position green connector header (internal termination) |
| 00580436 | 6-position green connector header |
| 111M5777 | 2-position green connector header |
Documentation
| Document | Description |
|---|---|
| 161580 | 3500/22M TDI Operation and Maintenance User Guide |
| 164466 | Network Accessories Datasheet |
Ordering Information
The 3500/22M TDI and I/O modules are ordered using the following configuration structure:
3500/22-AA-BB-CC
| Code | Option |
|---|---|
| A: TDI Type | 01 = Standard; 02 = TMR |
| B: I/O Module | 01 = 10Base-T/100Base-TX; 02 = 100Base-FX; 03 = 10/100 TX with Gold Relay; 04 = 100Base-FX with Gold Relay |
| C: Agency Approval | 00 = None; 01 = CSA/NRTL/C (Class 1, Div 2); 02 = Multi (CSA, ATEX, IECEx) |
Important Installation Notes
CAUTION — Upgrade Advisory: When upgrading an existing 3500 rack from a 3500/20 RIM to a 3500/22 TDI, the RIM I/O module must be removed before installing the TDI I/O module. Failure to do so will damage the TDI. The recommended sequence is: (1) Remove RIM, (2) Remove RIM I/O, (3) Insert TDI I/O, (4) Insert TDI.
Signal Grounding: The I/O module includes a 2-pin Signal Common terminal. When connecting to instrument ground, the selector switch on the Power Input Module (PIM) must be set to the «HP» position to isolate Signal Common from chassis (safety) ground.
Summary
The Bently Nevada 146031-01 is a robust, rack-integrated Ethernet I/O module that forms the data communication backbone of the 3500/22M Transient Data Interface. By enabling high-fidelity static and dynamic data transfer between the 3500 monitoring system and host diagnostic software, it empowers asset reliability teams to perform comprehensive machinery condition assessment — from routine steady-state trending to advanced transient event analysis — all within a compact, single-slot form factor designed for the demands of modern industrial environments.
