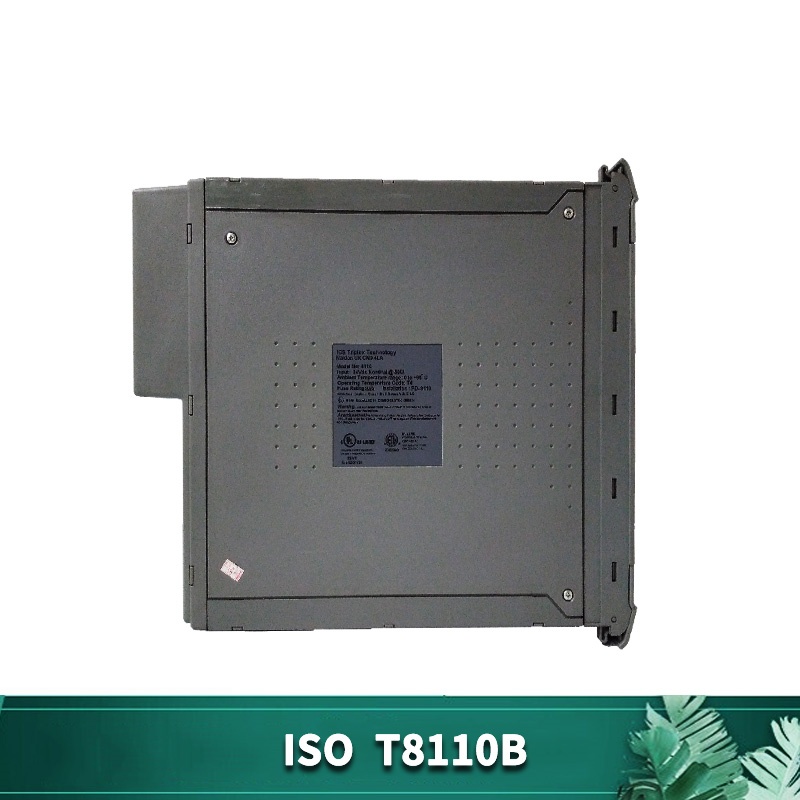

ICS Triplex T810B Trusted TMR Processor Module
1、 Basic Product Information
Project parameters
Product model T810B
Product Name Trusted TMR Processor Module
Early model T8110 (the same module series as T8110B)
Manufacturer ICS Triplex (now part of Rockwell Automation)
Product status: New/Second hand optional, supports spot shipping
Warranty period of 12 months
Origin: United States/Mexico

2、 Product positioning and core functions
1. Main purpose
Function Description
The main processing component of the Trusted system, which provides overall system control and monitoring
The ‘central brain’ of the system control center system, coordinating processors, input/output modules, communication interfaces, etc
Data reception and processing: Receive data from various analog and digital input/output (I/O) modules
Application program executes complex real-time control programs
2. Application Fields
Industry application scenarios
Fire and gas control in thermal power generation, emergency shutdown system (ESD)
Nuclear Power High Integrity Safety Control System
Chemical process control and safety critical applications
Turbine control
General industrial automation control and monitoring
3、 Core Features and Technical Specifications
1. Triple redundant architecture
Characteristic Description
The TMR architecture is based on Triple Modular Redundancy (TMR) architecture and adopts lock step configuration
Fault tolerant operation supports fault-tolerant 3-2-0 operation and has hardware fault tolerance function
Fault tolerant (HIFT) architecture for hardware implementation of HIFT architecture, fast fault identification and response
Automatic fault handling, error free alarm
2. Technical parameters
Parameter values
Processor clock 100 MHz
Working voltage 20-32V DC
Power consumption of 80W
Heat dissipation of 80W
I/O interface triple redundant module bus
SOE buffer 1000 events can be transferred to CI module 4000 event buffer

4、 System architecture and installation
1. Chassis compatibility
Project Details
Compatible chassis T8100 (Trusted TMR controller chassis)
Installation position: Rack main processor slot
Hot replacement support supports hot replacement without the need to reload the program
2. System configuration
Module type compatible model
Processor T8110B, T8110C
Interface adapters T8120, T8121, T8122, T8123
Communication interface T8151B
Digital I/O T8310, T8312, T8403, T8801
Simulate I/O T8431, T8442, T8451, T8461
Power modules T8220, T8222, T8225
5、 Comparison between T810B and other models
Model type description
T810B processor module Trusted TMR processor
T8110C processor module processor module C version
T812X interface adapter processor interface adapter
T8151B Communication Interface Trusted Communication Interface Module
T8801 input module 40 channel 24V DC digital input FTA
T8310 Input Module Digital Input Module
6、 Software and Configuration Tools
Tool functions
Trusted ™ IEC61131 Toolset supports 5 programming languages (LD, FBD, ST, SFC, IL) and up to 250 independent programs
Configuration, verification, and maintenance of graphical interface application logic
Offline simulation and online debugging support debugging and verification functions
7、 Certification and Standards
Certification Instructions
IEC 61508 SIL 3 T Ü V certification, compliant with SIL3 safety level standards
Safety certification meets the requirements of industrial safety critical applications
