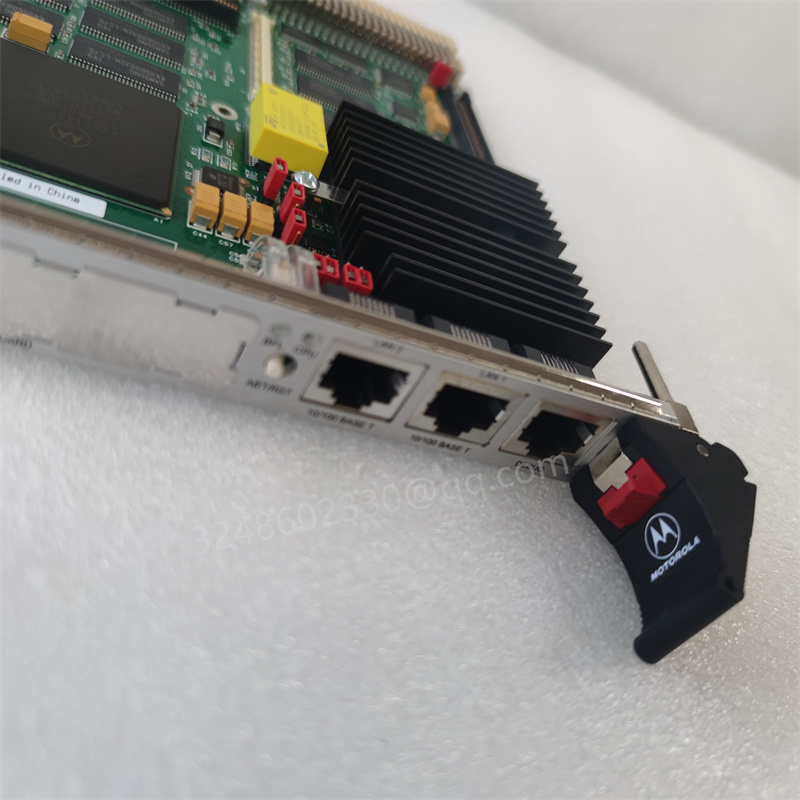

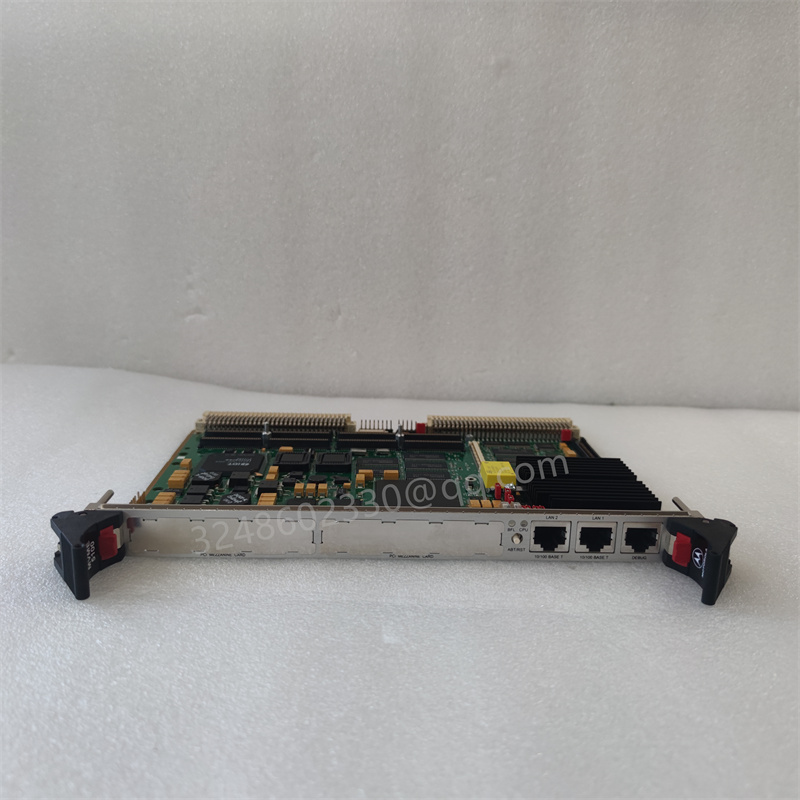

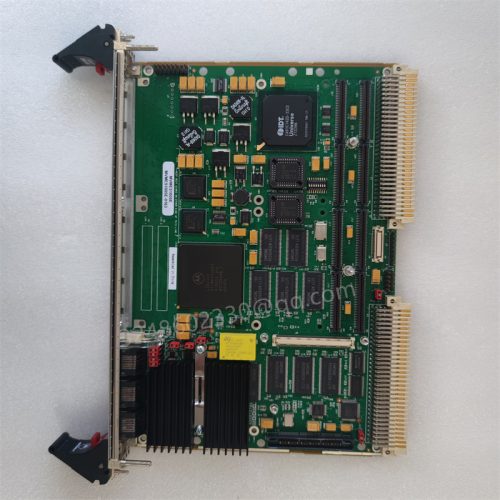

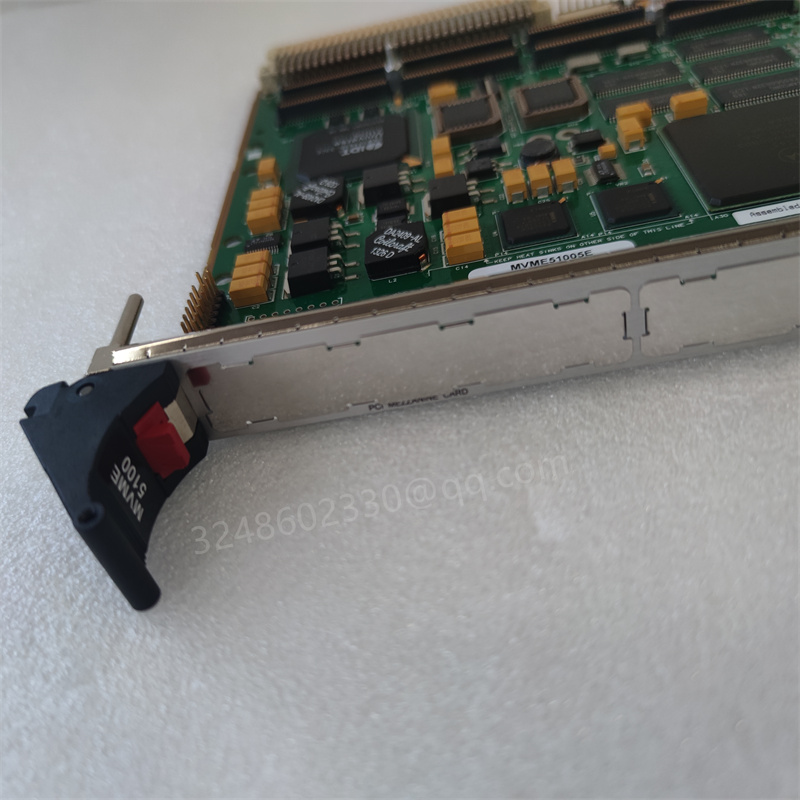

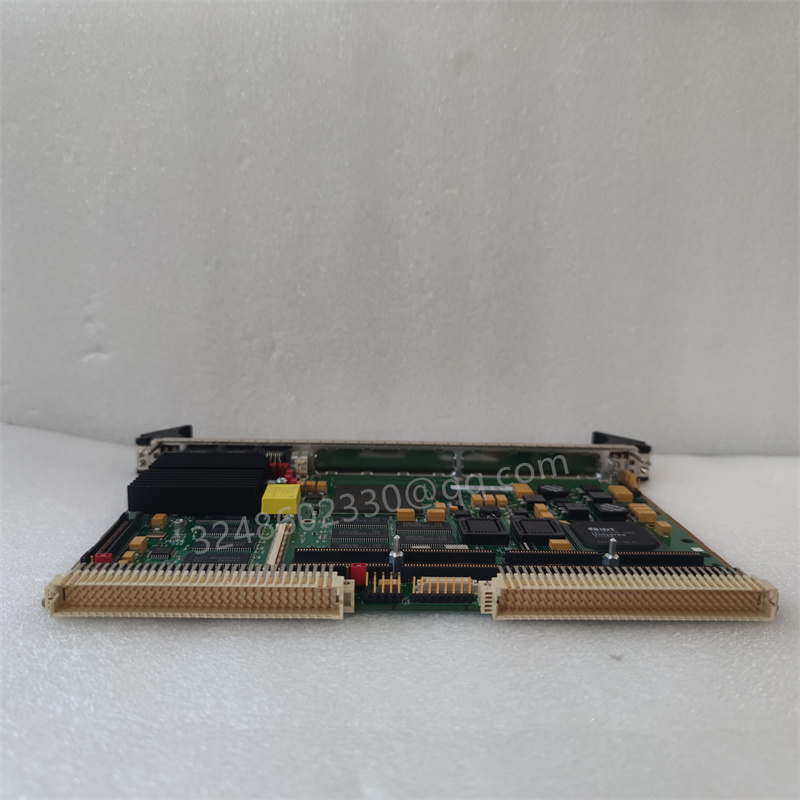

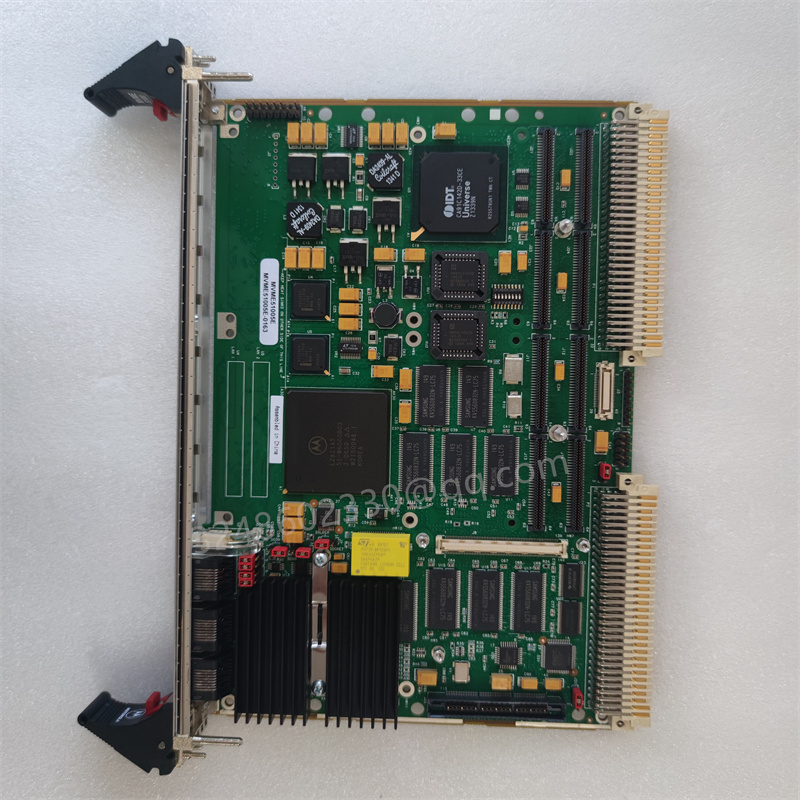

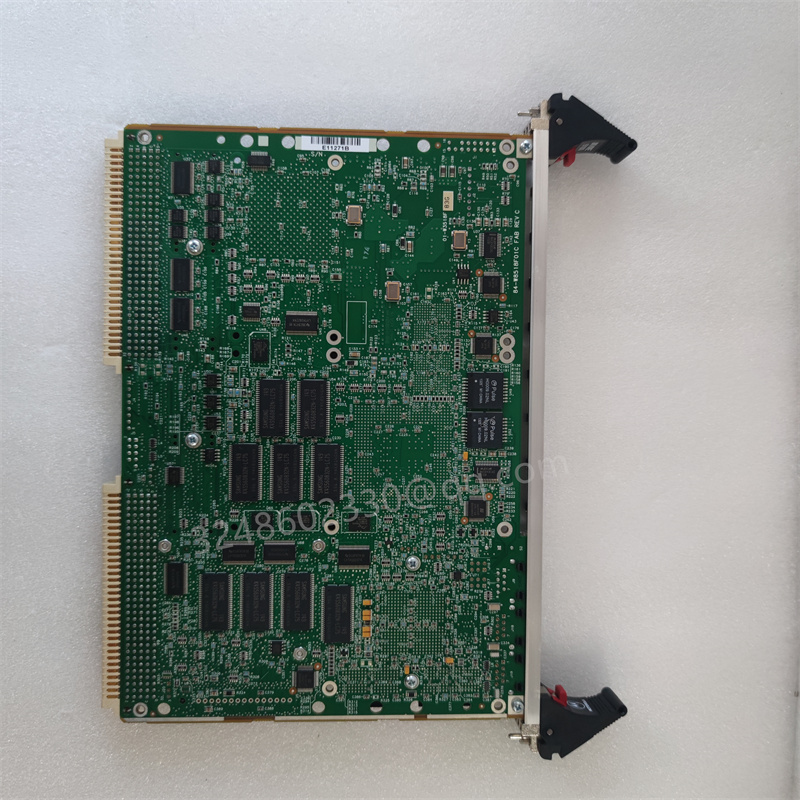

Motorola mvme5100 VME series processor module

technical specifications

Processor: supports a variety of PowerPC microprocessors, such as mpc7410 (1 GHz), mpc750 or mpc755 (400 MHz), with 32KB L1 cache.

Cache: up to 2MB of L2 backend cache.

Front end bus: 100 MHz front end bus.

Memory: onboard ECC SDRAM, with a capacity from 64MB to 512MB, can be expanded to 1GB through ram500 memory expansion module.

Flash memory: 17MB flash memory.

PMC expansion slot: dual 32/64 bit IEEE p1386.1 compatible PMC expansion slot.

PCI expansion connector: a 64 bit PCI expansion intermediate connector that allows the installation of up to four additional PMC modules.

Serial port: dual 16550 compatible asynchronous serial port.

Ethernet interface: dual 10baset/100basetx Ethernet.

NVRAM and clock: 32KB NVRAM and clock with replaceable battery backup.

Timers: four 32-bit timers and a watchdog timer.

Power demand: 5V DC, maximum 4a.

Operating temperature: 0 ° C to+55 ° C (extended temperature version is -20 ° C to+71 ° C).

Storage temperature: -40 ° C to+85 ° C.

Humidity: 5% to 95% (non condensing).

Dimensions: 233 mm x 167 mm x 22 mm.

Weight: about 1.2kg.

characteristic

High performance: high performance PowerPC microprocessor is adopted, which is suitable for algorithm intensive computing.

Flexible expansion: support a variety of expansion slots, including dual PMC slots and PCI expansion connectors.

Rich interfaces: multiple serial ports, Ethernet interfaces and VMEbus slots are provided.

Rugged and durable: suitable for harsh industrial environment, with protection grade of IP30.

Software support: support a variety of operating systems, such as VxWorks and Linux.

Application scenarios

Industrial automation: for data acquisition and control.

National defense and aerospace: applicable to systems requiring high reliability and high performance.

Transportation: used for traffic monitoring and management.

Healthcare: embedded computing for medical devices.

Scientific research: for laboratory data processing and analysis.
