PM862K02 ABB AC800M High-Availability Redundant Controller Unit
- TP830 Baseplate: The essential mounting baseplate required for the PM862K02 controller.
- TB807 Terminal Bus Module: Used as a bus terminator at the end of the CEX-Bus expansion.
- TK850 / TK851 Cables: CEX-Bus extension cables and RCU link cables for connecting redundant controller pairs.
- S800 I/O Modules: Distributed I/O modules (e.g., AI810, DO810) that connect directly to the PM862K02 via the CEX-Bus.
- Compact Control Builder (CCB): The required engineering software for configuring, programming, and maintaining the AC800M controller.
Классификация: ABB/模块/瑞士
Введите текст заголовка
- Brand: ABB
- Model: PM862K02 (Order Code: 3BSE081636R1)
- Product Title: ABB AC800M High-Availability Redundant Controller Unit
- Product Name: Dual-CPU Redundant Processor Module for DCS & Process Control Systems
Product Description
The ABB PM862K02 is a high-performance, redundant controller unit belonging to the AC800M series. Designed for mission-critical industrial automation, it serves as the central processing brain for Distributed Control Systems (DCS) and complex process control applications.
This module features a true dual-CPU redundant architecture, ensuring maximum system availability and seamless failover in the event of a hardware fault. It is engineered to handle real-time control logic, communicate with distributed I/O modules (such as the S800 series), and interface with upper-level supervisory systems like System 800xA. The PM862K02 is a staple in industries where unplanned downtime is not an option, providing robust and reliable control for continuous processes.

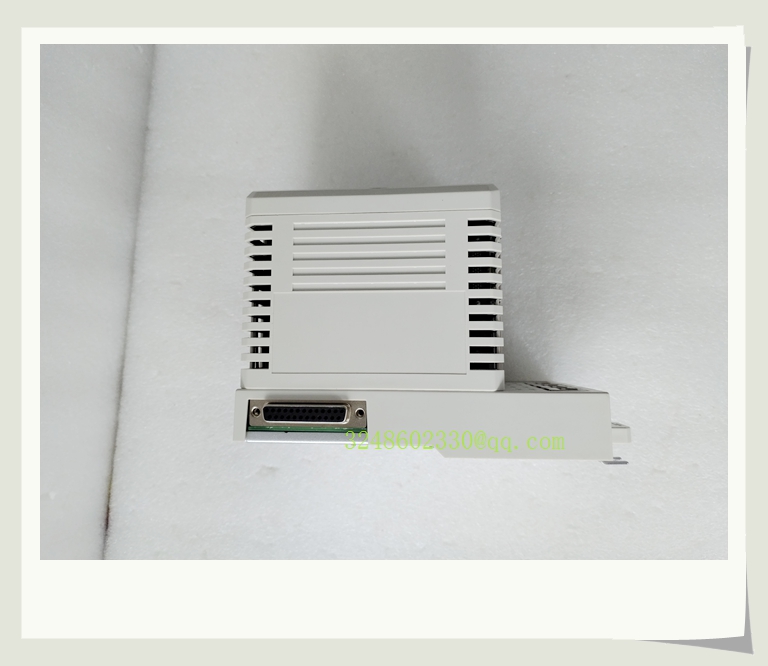

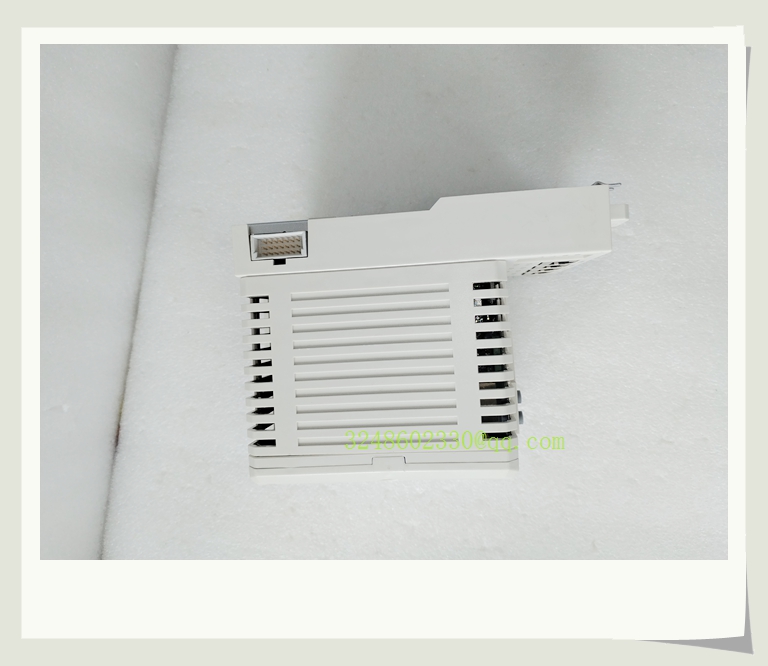

PM862K01/PM862K02
Technical Specifications
- Product Series: ABB AC800M
- Processor: Industrial-grade CPU (e.g., MPC866), 67 MHz clock frequency
- Memory: 32 MB RAM (Application), 4 MB Flash PROM (Firmware)
- Redundancy: CPU, CEX-Bus, Communication Interfaces, and S800 I/O
- Communication Interfaces:
- 2x RJ45 Ethernet Ports (CN1, CN2) — 10 Mbit/s for Control Network
- 2x RJ45 Serial Ports (COM3: RS-232C with modem control, COM4: Isolated for configuration)
- Power Supply: 24V DC (±20%)
- Power Consumption: Max 8.6 W
- Operating Temperature: -25°C to +70°C
- Protection Class: IP20
- Dimensions (W x H x D): 119 mm x 186 mm x 135 mm (including baseplate)
- Weight: Approx. 2900 g (including baseplate)
Key Features and Benefits
- True Hot-Standby Redundancy: The dual-CPU design ensures that if the primary processor fails, the standby processor takes over instantly without disrupting the control process, effectively eliminating single points of failure.
- Comprehensive System Redundancy: Beyond the CPU, it supports redundancy for the CEX communication bus, network interfaces, and connected S800 I/O modules, providing multi-layered protection.
- Flexible & Scalable Architecture: Modular design allows for easy expansion using fieldbus communication modules, enabling integration with various industrial networks (e.g., PROFIBUS, Modbus).
- Advanced Diagnostics: Equipped with LED indicators for rapid fault localization and simplified troubleshooting, minimizing Mean Time To Repair (MTTR).
- Standardized Engineering: Fully compatible with ABB’s Compact Control Builder (CCB) programming software and System 800xA, supporting IEC 61131-3 programming languages (LD, FBD, ST).
Application Areas
- Oil & Gas / Petrochemical: Continuous process control for refineries, reactors, and pipeline monitoring.
- Power Generation: Boiler, turbine, and Balance of Plant (BOP) control in thermal and combined-cycle power stations.
- Water & Wastewater Treatment: Large-scale automation for filtration, dosing, and distribution systems.
- Manufacturing & Automotive: High-availability control for assembly lines and critical manufacturing processes.
- Marine & Offshore: Rugged control solutions for engine rooms and deck machinery.
Brand-Related Product Recommendations
- TP830 Baseplate: The essential mounting baseplate required for the PM862K02 controller.
- TB807 Terminal Bus Module: Used as a bus terminator at the end of the CEX-Bus expansion.
- TK850 / TK851 Cables: CEX-Bus extension cables and RCU link cables for connecting redundant controller pairs.
- S800 I/O Modules: Distributed I/O modules (e.g., AI810, DO810) that connect directly to the PM862K02 via the CEX-Bus.
- Compact Control Builder (CCB): The required engineering software for configuring, programming, and maintaining the AC800M controller.
Installation and Maintenance
Installation:
- Mounting: Slide the PM862K02 onto the TP830 baseplate and secure it using the unique slide-and-lock mechanism. Mount the baseplate on a standard DIN rail or control panel.
- Redundant Pairing: For redundant setups, install a second PM862K02 and connect them using the TK851 RCU link cable.
- Network Connection: Connect the control network Ethernet cables to CN1 and CN2. For redundancy, connect to separate network switches.
- I/O Expansion: Connect the CEX-Bus expansion cables (TK850) to daisy-chain additional I/O modules or communication modules.
- Commissioning: Power up the system and use Compact Control Builder to configure the hardware, set IP addresses, and download the control application.
Maintenance:
- Redundancy Testing: Periodically perform a controlled switchover test (during a safe maintenance window) to verify that the standby CPU takes over seamlessly.
- Battery Replacement: The controller uses backup batteries to retain memory during power loss. Replace these batteries according to ABB’s recommended schedule (typically every 3-5 years) to prevent data loss.
- Firmware Updates: Regularly check for and apply firmware updates via Compact Control Builder to benefit from bug fixes, security patches, and performance enhancements.
- Visual Inspection: During scheduled outages, inspect the module and baseplate for signs of overheating, dust accumulation, or loose connections.
- Diagnostics Monitoring: Utilize the controller’s built-in diagnostics and System 800xA to continuously monitor CPU load, communication errors, and hardware health.
