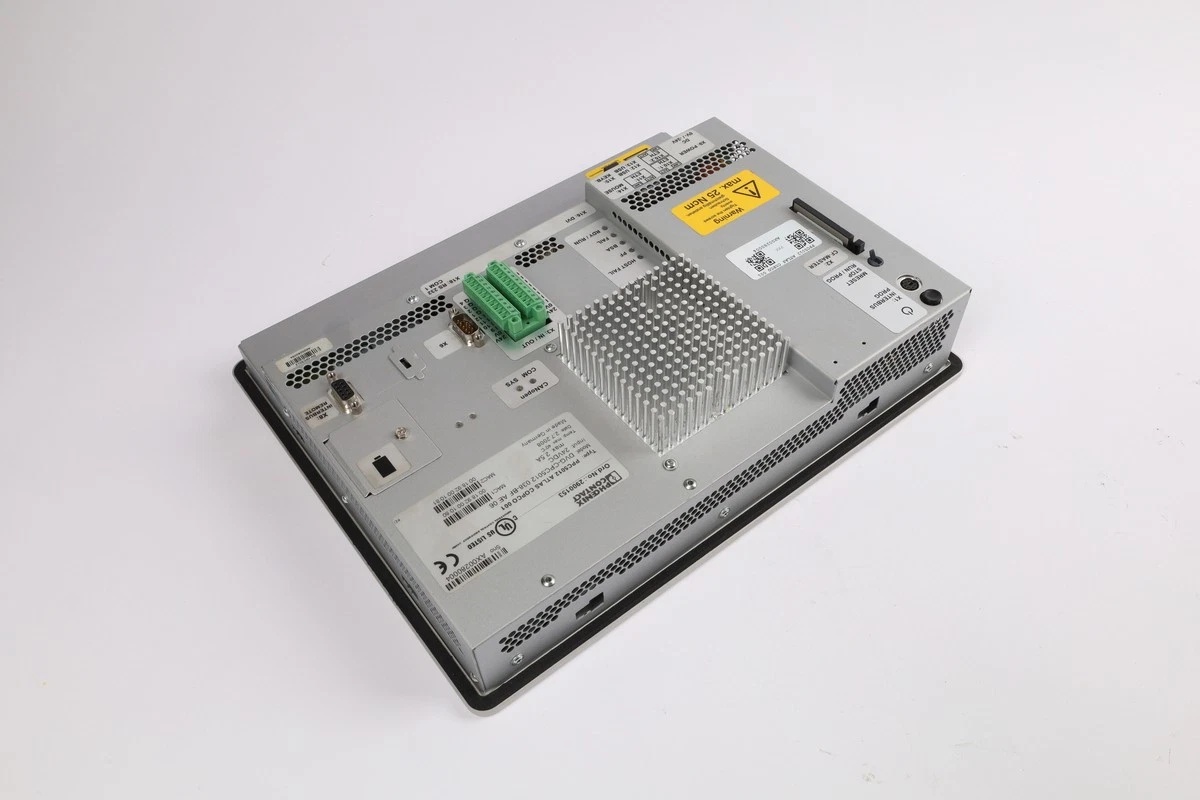

PPC5012 (full name PPC 5012 AU13) is a 12.1-inch panel industrial tablet computer from Phoenix Contact, model 2913441. It is a compact, fanless, IP65 protected HMI/IPC used for embedded control and monitoring interfaces in industrial sites.

1、 Model and positioning
Model: PPC 5012 AU13 (Material Number 2913441)
Brand: Phoenix Contact (Phoenix Contact, Germany)
Type: Panel PC industrial tablet, integrated touch screen+soft keyboard, no expansion slot
Usage: On site HMI+small IPC for production lines, equipment control, buildings/energy, ships, etc
Installation: panel embedding, VESA bracket, 19 inch rack (optional)
2、 Core hardware specifications
1) Display and Touch Control
Screen: 12.1-inch TFT LCD, 800 × 600 (SVGA)
Brightness: Approximately 300 cd/m ², industrial grade backlight
Touch: Resistive touch screen, supports soft keyboard (including numeric/alphabetical/function keys)
Front panel: IP65 protection (dustproof and waterproof), cast aluminum shell
2) Computing core (configurable)
CPU：Intel Celeron M ULV 800MHz / 1GHz； Pentium M 1.1GHz
Memory: 512MB/1GB/2GB DDR (optional)
Storage: 2.5-inch SATA HDD (≥ 40GB) or SSD, fanless design
Heat dissipation: passive heat dissipation (fanless), backplane heat dissipation
3) Electrical and Environmental
Power supply: 19-29VDC (typical 24VDC), wide voltage suitable for mobile/industrial scenarios
Power consumption: approximately 60W
Temperature: 0 ℃~+50 ℃ (industrial grade)
Size: Approximately 305 × 240 × 60mm (width × height × depth)
Weight: 4kg (including packaging)
4) Interface (Backboard)
2×USB 2.0
1 x RJ45 (Gigabit Ethernet)
1×RS-232/485
Audio input/output
power terminal
3、 Key features
Fanless+IP65: dustproof and moisture-proof, suitable for workshops with dust, oil stains, and humidity
Embedded integration: screen, touch, and host integration, saving installation space
Wide voltage 24VDC: Suitable for commonly used industrial power supply, resistant to voltage fluctuations
Soft keyboard+function keys: No need for external keyboard and mouse, convenient on-site operation
Made in Germany: CE/UL/RoHS certified, stable and durable
4、 Typical application scenarios
Industrial automation: production line HMI, PLC upper monitoring, equipment operation panel
Energy and electricity: power station control panel, photovoltaic/wind power monitoring, substation operation terminal
Intelligent logistics: sorting line, AGV scheduling, warehouse management terminal
Ship/Maritime: Engine room monitoring, control console (wide temperature/anti vibration)
Construction Machinery: Vehicle/Onboard Control Terminal (24VDC Power Supply)
5、 Difference from ordinary industrial control computers
PPC5012: Panel type, fanless IP65、 Embedded, focusing on on-site HMI and lightweight control
Rack mounted IPC (such as Advantech IPC-510): box type, multi slot, expandable, focusing on centralized computing inside the cabinet
