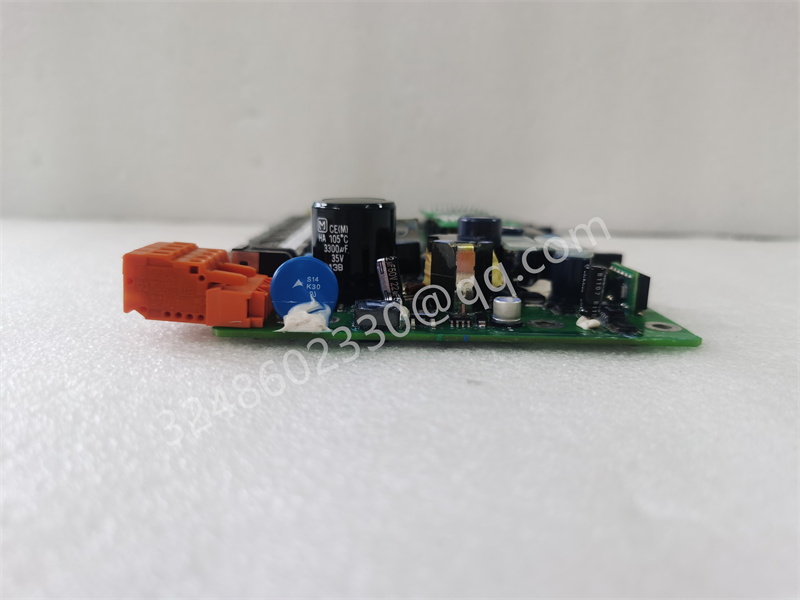

PPC907BE (3BHE024577R0101) | ABB High Performance Controller Module (AMC 34/AC 800M Platform)
1、 Product Information
PPC907BE (order number 3BHE024577R0101) is a high-performance controller module for ABB’s AC 800M/AMC 34 series. As the core unit of medium voltage frequency converters and process control, it is responsible for motor drive control, excitation regulation, DCS/PLC process logic operation, and is widely applicable to harsh industrial scenarios such as power, metallurgy, and oil and gas.

2、 Core parameters
Model/Order Number: PPC907BE (PPC907BE101)/3BHE024577R0101
Processor: 32-bit RISC, 200 MHz (some versions 400 MHz)
Memory/Storage: 2 MB RAM+4 MB Flash (High end 256-512 MB RAM)
I/O channels: 8 analog inputs (AI)+8 analog outputs (AO)+32 digital I/O
Communication interfaces: CAN bus, Ethernet RS‑485； Supports Profibus DP, Modbus TCP/RTU
Electrical isolation: I/O and power isolation ≥ 1500 VAC
Power supply: 24 VDC, typical power consumption 4.5 W
Temperature: Operating -20 ℃~+70 ℃ (Extended -40 ℃~+70 ℃)
Certification: CE, cULus, RoHS; Compliant with IEC 61508 functional safety standard
3、 Specifications (hardware/software)
Form: Standard plug-in card, metal reinforced backplate, PCB anti-corrosion coating
Dimensions (height x width x depth): 120 x 80 x 30 mm (compact)
Weight: Approximately 300 grams
Status indication: LED displays power, operation, communication, and fault status
Diagnostic function: Channel short circuit/overcurrent, bus fault, temperature abnormal alarm, supports remote diagnosis
Software support: ABB Control Builder, Symphony Plus engineering tools
Scalability: Can be equipped with S800/S900 I/O modules to expand AI/AO/DI/DO channels
4、 Usage scenarios
Power (core): Excitation control of synchronous generators in thermal/hydroelectric/gas-fired power plants, main control of medium voltage frequency converters (ACS2000 series)
Metallurgy/metalworking: high-speed motion control and closed-loop regulation of rolling mills, blast furnaces, and continuous casting machines
Oil and gas/chemical industry: Variable frequency drive control for compressors and pumps, precise temperature/pressure control for reaction vessels
Process automation: DCS system master control, S800 I/O substation controller, factory level data acquisition and monitoring
Rail transit/energy: traction inverter control, wind/photovoltaic grid connected inverter main control
5、 Related models (PPC907 series and alternatives)
PPC907BE101: Standard Edition, 200 MHz, 2 MB/4 MB, Basic I/O (Mainstream Models)
PPC907BE102: High end version, 400 MHz, 512 MB RAM, dual port redundancy
PPC907BE201: No analog version, only 32 digital I/O channels, suitable for pure logic control scenarios
Supporting modules: S800 I/O series (AI/AO/DI/DO), AC 800M redundant power supply, Crowbar protection board
