Rexroth SYHNC100-NIB-23W-08-P-D-E23-A012 Digital Axis Control Module
Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
WhatsApp:+86 18030183032
Mailbox：3248602330@qq.com
Классификация: Rexroth
Введите текст заголовка
Rexroth SYHNC100-NIB-23W-08-P-D-E23-A012 Digital Axis Control Module
Product Core Overview
The SYHNC100-NIB-23W-08-P-D-E23-A012 is a programmable digital axis controller belonging to the VT-HNC100 series. Engineered by Bosch Rexroth, it is specifically designed to meet the rigorous closed-loop control requirements of hydraulic and electric drive systems in heavy industrial applications.
The SYHNC100-NIB-23W-08-P-D-E23-A012 is a programmable digital axis controller belonging to the VT-HNC100 series. Engineered by Bosch Rexroth, it is specifically designed to meet the rigorous closed-loop control requirements of hydraulic and electric drive systems in heavy industrial applications.
Key Technical Specifications
- Manufacturer: Bosch Rexroth (also associated with Indramat)
- Series: VT-HNC100
- Functional Description: Digital Axis Control / Servo Valve Controller
- Axis Capacity: Programmable NC control for up to four axes
- I/O Configuration: Features 8 digital inputs/outputs (indicated by the «-08» in the model number)
- Communication: Integrated PROFIBUS DP bus connection
- Component Series: 23
- Housing: Wall-mountable design

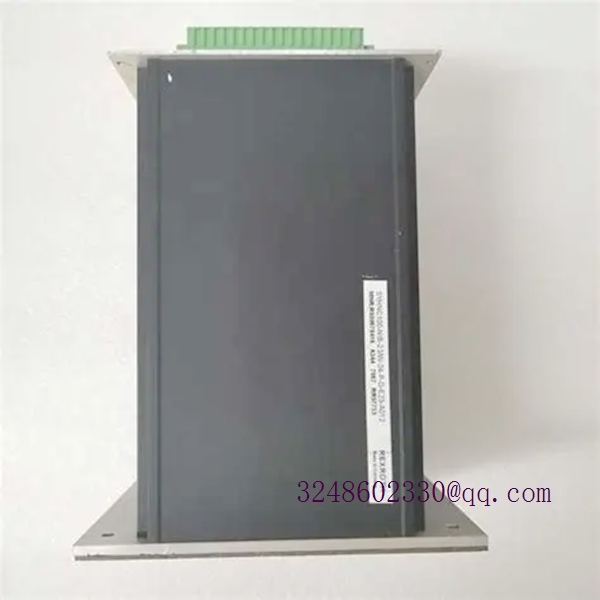

SYHNC 100-NIB-23W-08-P-D-E23-A012
SYHNC 100-NIB-23W-08-P-D-E23-A012
Recommended Same-Series Models
For system expansion or replacement within the VT-HNC100 platform, consider:
For system expansion or replacement within the VT-HNC100 platform, consider:
- SYHNC100-NIB-23/W-24-P-D-E23-A012 (Variant with different I/O or firmware)
- SYHNC100-NB-23/W-24-P-D-E23-A012
- SYHNC100-BLA-23/W-08-C-0-E23-A014
- VT-MVTW-1-16D
Professional Quality Control Test SOP
To ensure operational reliability in critical control loops, suppliers typically adhere to the following testing protocols:
To ensure operational reliability in critical control loops, suppliers typically adhere to the following testing protocols:
- Visual & Physical Inspection: Verification of part numbers, wall-mount housing integrity, and PROFIBUS connector pin condition.
- Functional Bench Testing: Simulating hydraulic/electric drive signals to validate closed-loop control algorithms and digital I/O responsiveness.
- Communication Testing: Verifying stable data exchange over the PROFIBUS DP network under load.
- Final Certification: Issuance of a certificate of conformity confirming the unit is fully operational and meets original manufacturer specifications.
Application Scenarios & Features
- Primary Applications: Hydraulic drive closed-loop control, automated production lines, robotics, and precision machining machinery.
- Key Features: Delivers high-precision motion control (speed, position, and torque) using advanced control algorithms. Its robust hardware design ensures long-term stability in harsh industrial environments.
Frequently Asked Questions (FAQ)
- Q: What is the primary function of this module?
A: It acts as a programmable NC controller specifically designed for the precise closed-loop control of hydraulic and electric drives. - Q: What does the «-08» in the model number signify?
A: It indicates that this specific configuration is equipped with 8 digital inputs/outputs. - Q: Which communication protocol does this module support?
A: It features a built-in PROFIBUS DP bus connection for seamless integration into industrial automation networks. - Q: How many axes can this controller manage?
A: The VT-HNC100 series is programmable to control up to four axes.
