RLX2-IFH24E (ProSoft RadioLinx Industrial Frequency Hopping Wireless Ethernet Communication Module)
1、 Product Information
RLX2-IFH24E is an industrial grade 2.4GHz Frequency Hopping Spread Spectrum (FHSS) wireless Ethernet radio/communication module produced by ProSoft Technology in the United States, belonging to RadioLinx ® Series, designed for harsh industrial environments, providing long-distance, high anti-interference wireless Ethernet+serial communication, supporting three roles: master station/relay/remote station, replacing wired and eliminating wiring difficulties.

2、 Core parameters
Wireless standard: Frequency hopping spread spectrum (FHSS), 2.4 GHz ISM band (2.400-2.4835 GHz)
RF speed: 1.1 Mbps (high speed)/345 kbps (long-range stable), programmable
Transmission power:
Version A (FCC): 100 mW to 1 W (programmable)
E-version (ETSI/domestic): 10 mW to 100 mW (programmable)
Receiver sensitivity: 97 dBm at 1.1 Mbps; At 345 kbps -104 dBm
Line of sight distance: High gain antennas can reach up to 15+miles (approximately 24 km)
Interface:
Ethernet: 10/100 Base-T, RJ45 (shielded)
Serial port: RS-232/422/485300 bps~230 kbps, supports Modbus RTU/ASCII
Antenna: RP-SMA × 1
Security: 128 bit AES encryption, 32-bit CRC, ARQ automatic retransmission
Topology: point-to-point, point to multipoint, relay (store and forward)
Electrical: 9-24 VDC, maximum 4.2 W
Environment: Working -40 ℃~+75 ℃; Humidity 0-95% RH (non condensing); Anti vibration 5 g (10-150 Hz); Resistance to impact 20 g (working)/30 g (non working)
Certification: cULus, Class 1 Div 2 (Explosion proof) CE、FCC、IC、CB
3、 Specifications (hardware/software)

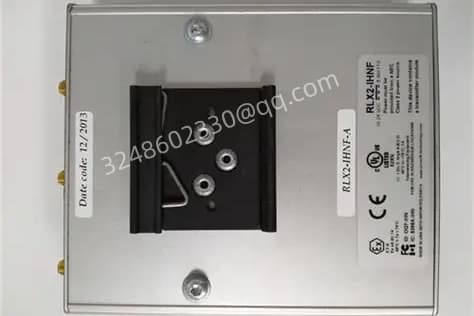

Shell: extruded aluminum alloy, industrial protection, anti electromagnetic interference, dustproof, corrosion-resistant
Installation: Standard DIN rail or panel installation
Configuration software: RadioLinx ControlScape FH (graphical, topology visualization, signal/temperature diagnosis, alarm); Built in OPC server, compatible with HMI/SCADA
Protocol compatibility: IEEE 802.3, TCP/UDP, IP, Modbus TCP/RTU, serial tunnel

4、 Size and weight
Dimensions (height x width x depth): 14.7 x 11.8 x 3.8 cm (5.78 x 4.64 x 1.48 in)
Weight: 369 g (13 oz)
5、 Usage scenarios
SCADA remote measurement and control: wireless data transmission across kilometer level factory areas/regions in power, water conservancy, oil and gas, mining, etc.
Severe industrial sites: metallurgy, chemical, building materials, heat treatment workshops (high temperature, high humidity, strong electromagnetic interference).
Hazardous and explosion-proof areas: oil and gas stations, chemical workshops, dust environments (Class 1 Div 2 certification).
Mobile device networking: real-time communication between port machinery, mining vehicles, AGVs, and scheduling systems.
Wireless transformation of old equipment: PLC, instruments, sensors and other wired devices can be quickly wirelessly transformed without the need for hardware replacement.
6、 Related models
RLX2-IFH24E-A: FCC North American version, 1 W transmission power, preferred for ultra long distances.
RLX2-IFH24E-E: ETSI European/Domestic Edition, 100 mW, compliant universal type.
RLX-IFH24E: Previous generation model, functionally compatible and directly replaceable.
RLX2-IHA24E/5E: Same series 2.4 GHz/5 GHz industrial radio station, suitable for frequency band congestion or high-speed scenarios.
