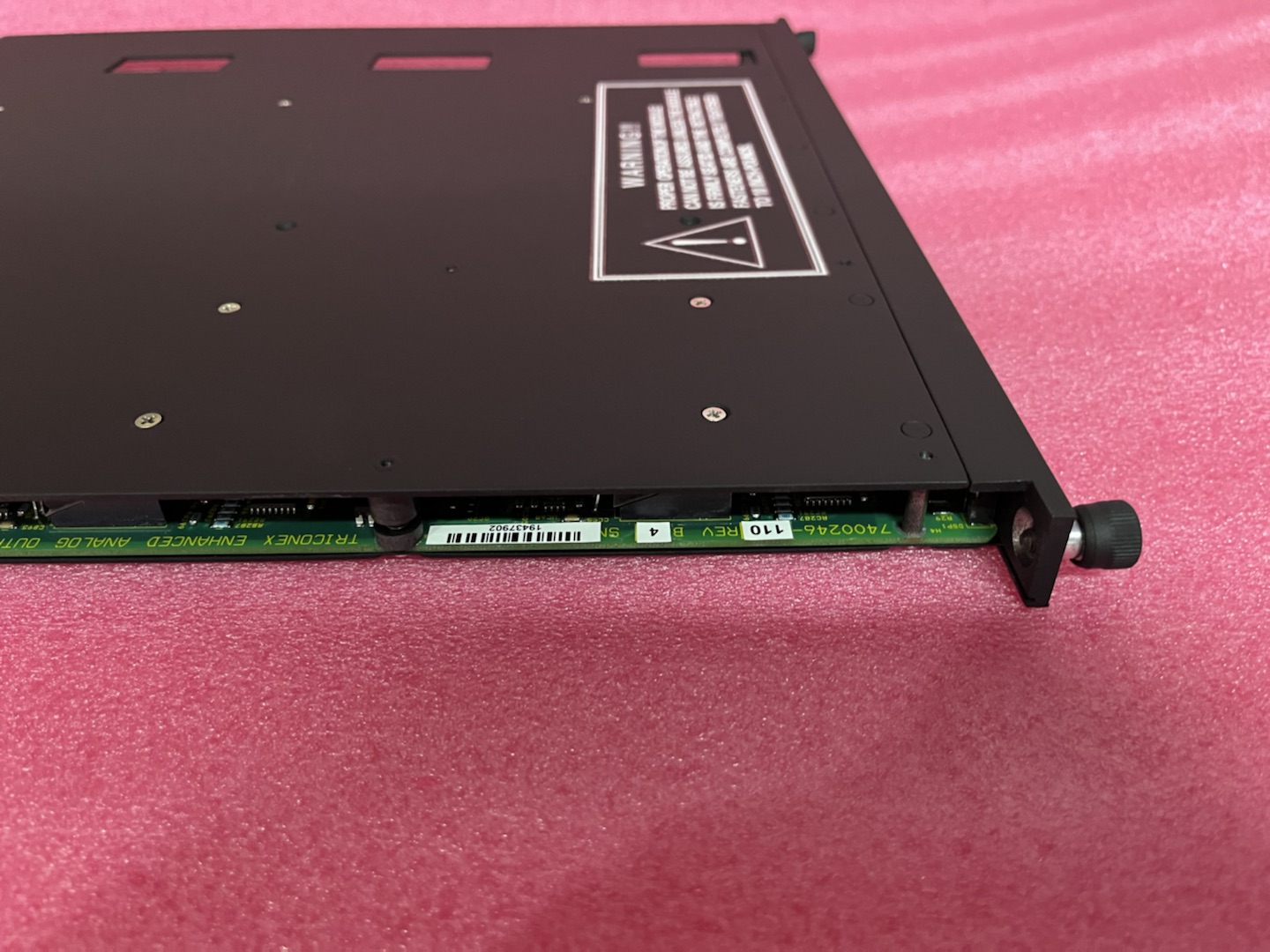

Triconex 3806E Analog Output Module
1、 Basic Product Information
Source of project parameters
Product model 3806E
Complete model 3806E
Product Name: 8-Point Analog Output Module
Product Series: Triconex Tricon Security System
Product Type Analog Output Module
Manufacturer Triconex (now owned by Honeywell/Schneider Electric)
Origin: United States
Product Status: Current Product
2、 Core functional characteristics
Source of Function Description
Analog output conversion converts digital control signals into analog signals and outputs them to the actuator
High current output supports standard current output (4-20mA) and high current output (20-320mA)
The TMR redundant architecture adopts triple modular redundancy (TMR) technology to ensure high reliability
The self diagnostic function module monitors its own current output, provides self calibration and module health information
The output data of the three channels in the channel voting mechanism is selected through voting to drive the output of the healthy channel
Loop feedback verification: Each channel has a current loop feedback circuit to verify the accuracy of the analog signal
Prevent non selected channel driving design to ensure that non selected channels do not drive analog signals to the field
Hot swappable support supports hot standby function, allowing for online replacement of faulty modules
Optimization of Turbine Control for Turbomechanical Control (such as Turbine Control) Optimization Design

3、 Technical specifications and parameters
Source of parameter values
Number of output channels: 8 output channels
Output configuration includes 6 4-20mA outputs and 2 20-320mA outputs
Output accuracy<0.25% FSR (within 4-20mA range)
Resolution of 12 bits
Output over range protection+42.5VDC, continuous
Switching time<10ms (typical value)
Supply voltage 24V DC
Input voltage range 0-55V DC (partial source)
Coupling method DC coupling (direct current coupling)
Return configuration Common return
Working temperature -40 ° C to+70 ° C/-40 ° F to 85 ° F (approximately -40 ° C to 29.4 ° C)
Storage temperature from 0 ° C to 60 ° C (some sources)
The module size is approximately 4.4 cm x 16.9 cm x 22 cm (H x W x D)
The module weighs approximately 5 kg
Transport weight approximately 7.5 kg
Fault detection: Failure of any diagnostic test will activate the fault indicator and chassis alarm
4、 Security certification
Certification Explanation Source
IEC 61508 complies with functional safety standards
SIL 3 supports SIL3 level Safety Instrumented System (SIS) applications
TMR architecture triple redundant fault-tolerant design
ISA 84.01 complies with process safety standards

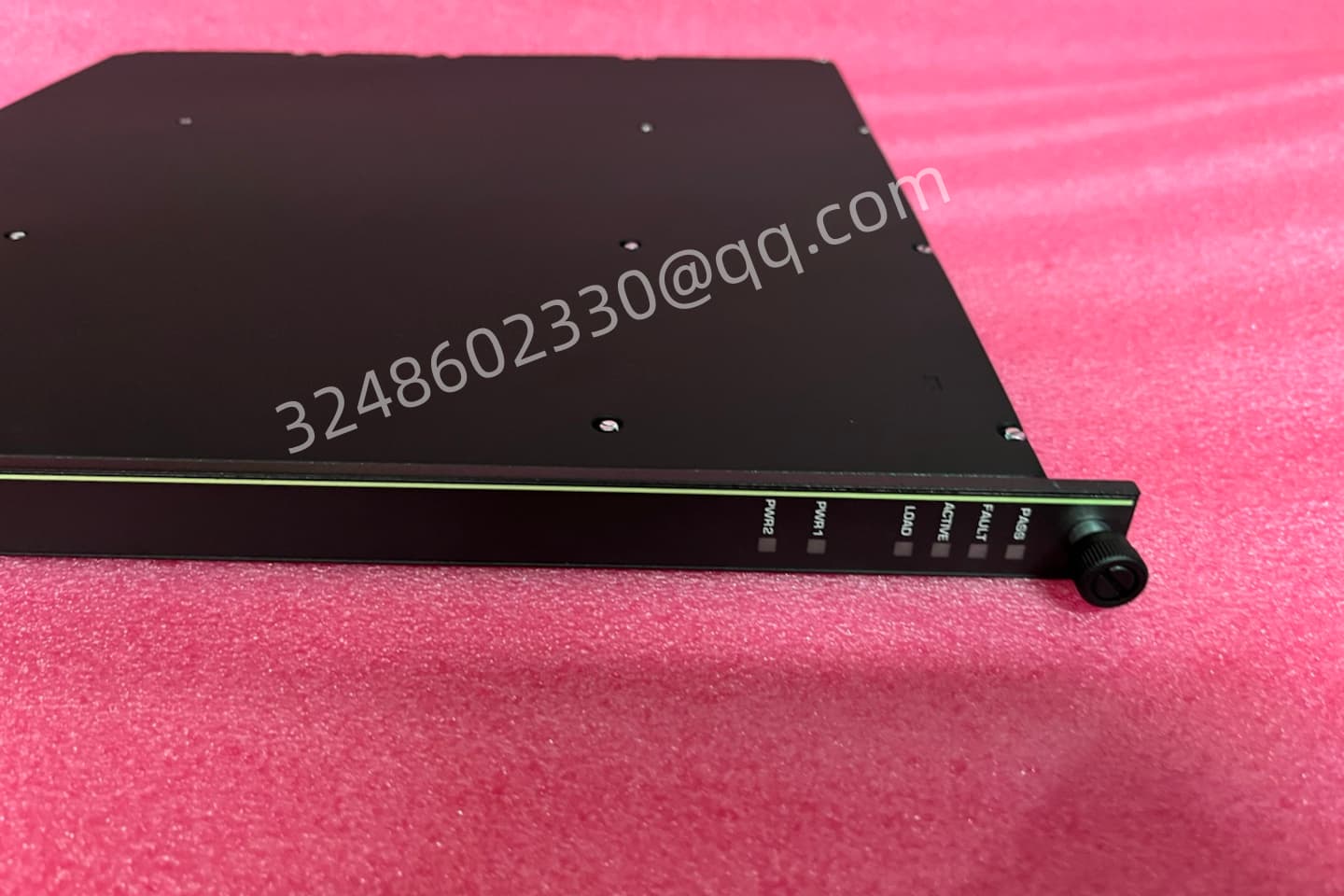

5、 Module indicator light
Source of indicator light description
Power indicator lights PWR1 and PWR2 indicate redundant power status
Fuse indicator, separate fuse indicator
Activated when diagnostic test for malfunction indicator light fails
When the chassis alarm malfunctions, trigger the chassis alarm

6、 Triconex 3806 series model comparison
Model Type Channel Number/Function Description Source
3806E analog output 8-channel (6 × 4-20mA+2 × 20-320mA) high current output module, optimized for turbine control
3805E analog output 8-channel standard analog output module
3805H analog output with 8 channels supporting increased inductive load
3807 bipolar analog output 4-channel (-60mA to+60mA) servo control application, only for control applications, not for safety applications
3700/3700A Analog Input — Analog Input Module
3701 Analog Input — Analog Input Module
3703E Analog Input — Analog Input Module
3704E Analog Input — Analog Input Module
3720 Analog Input/Output — Analog Input/Output Module
3721 Analog Input — Analog Input Module
7、 Compatible system module
Module category compatible model source
Main processors 3825E, 3905E, 8202E
Digital input modules 3501E, 3502E, 3503E
Digital output modules 3601E, 3602E, 3603E
Communication modules 3901 and 3902
Expansion processors 3810, 3811
Terminal panels 9863-710, 9863-810
8、 Application Fields
Source of Industry Application Scenarios
Oil and gas turbine control system, emergency shutdown system
Turbine control in power plants
Chemical process control system
Process Control in Metallurgical Industry
Water treatment system
9、 Supporting components
Component type and model description
Recommended matching panel for terminal panel 9863-710, suitable for turbine control
Terminal Panel 9863-810 Safety I/O Module Terminal Panel
Communication interfaces RS-485 and Modbus are mentioned in some sources
Communication interfaces Ethernet and TCP/IP are mentioned in some sources
