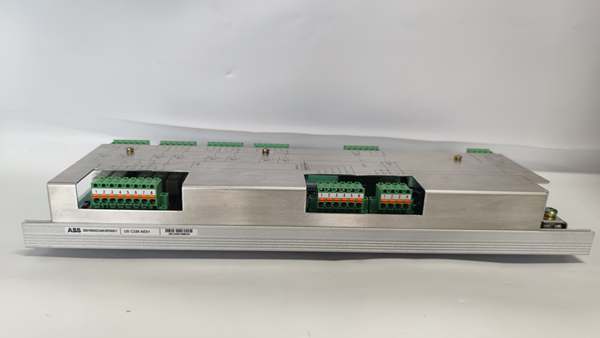

ABB USC329AE01 (3BHB002483R0001) Industrial Controller Module
This is an ABB brand CPU processor/output control module, belonging to DCS (Distributed Control System) card, widely used in industrial automation scenarios.

core parameters
Specific description of parameter categories
Complete model 3BHB002483R0001/USC329AE01
brand ABB
Type: CPU processor+analog output module
Input voltage AC220V/AC85-264V (wide voltage adaptation)
Output voltage/current DC24V/10A (rated power 0.75kW)
Contact capacity AC1-25A, AC3-15A
Working temperature -20 ° C~+60 ° C
Protection level IP20~IP45
Communication interfaces Ethernet, RS-232, RS-485, Profibus, Modbus
Safety certification IEC 61508, SIL2

Main functions
Multi channel control: capable of simultaneously monitoring and controlling multiple process variables such as temperature, pressure, flow rate, etc
Real time operating system: ensuring low latency and high priority execution of control tasks
Programmable configuration: supports ABB Control Builder and other tools for customizing control logic
Redundant design: supports dual power supply and dual processor redundant configurations to avoid single point failures
Self diagnosis and alarm: Real time monitoring of hardware status, triggering alarms and recording fault codes when abnormal
Large capacity storage: saving application programs, configuration data, historical records, and alarm information
Typical application scenarios
Specific applications in the field
Power industry generator control, substation automation, electrical control system (ECS)
Process control in industries such as chemical engineering, metallurgy, and papermaking (DAS/MCS/SCS)
Manufacturing industries include automobile manufacturing, electronics manufacturing, food processing, and pharmaceuticals
Infrastructure water treatment, building automation, rail transit
Mechanical manufacturing CNC machine tools, packaging equipment, robot control
